09032966850222 - HARTING

Description: DIN C female straight 96pin, press-in 4.5mm tails, PL2, NFF F1-I2

Download 09032966850222 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09032966850222 - HARTING - PCB symbol
click to zoom
PCB Footprints

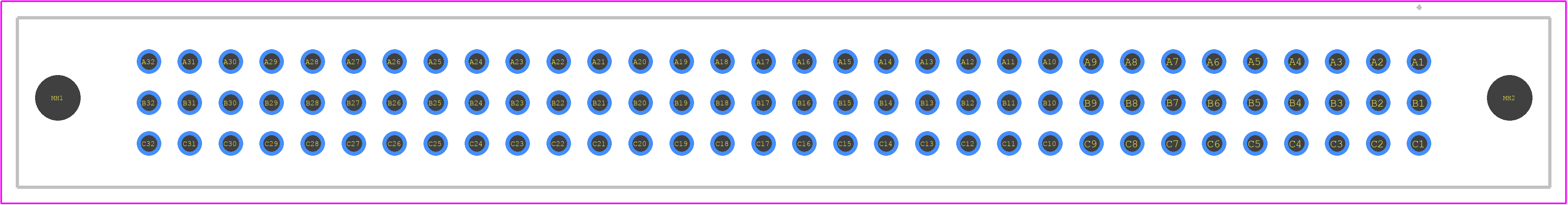

09032966850222 - HARTING PCB footprint - Other - Other - 09032966850222-20
click to zoom
3D Models
09032966850222 - HARTING - 3D model - Other - 09032966850222-20
click to zoom

09032966850222 Details

  • Manufacturer Part Number:

    09032966850222

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    96

09032966850222 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09032966850222 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09032966850222 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
  • Yes, the 09032966850222 connector is designed to withstand high-vibration applications, making it suitable for use in industrial, transportation, and other environments where vibration is a concern.
  • The 09032966850222 connector has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications.
  • Yes, the 09032966850222 connector is part of the HARTING Han series and is compatible with other Han series connectors, allowing for easy integration and interchangeability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09032966850222 Overview

Use the download button to access the 09032966850222 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09032, or try a keyword search, such as Headers and Edge Type Connectors
