09032966851 - HARTING

Description: 96 Position Din Connector Receptacle, Female Sockets Gold Through Hole

Download 09032966851 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09032966851 - HARTING - PCB symbol
click to zoom

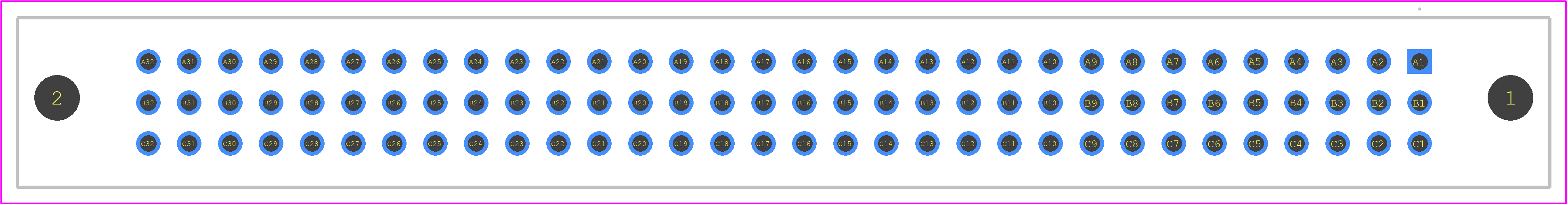

PCB Footprints
09032966851 - HARTING PCB footprint - Other - Other - 09032966851-3
click to zoom
3D Models
09032966851 - HARTING - 3D model - Other - 09032966851-3
click to zoom

09032966851 Details

  • Manufacturer Part Number:

    09032966851

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: DIN 41612

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au) - with Palladium/Nickel (Pd/Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    96

  • UL Flammability Code:

    94V-0

09032966851 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 09032966851 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09032966851 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Category 2, which includes vibration testing.
  • Yes, the 09032966851 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and a humidity range of 5% to 95% RH.
  • Yes, the 09032966851 connector is part of the HARTING Han series and is compatible with other Han connectors, allowing for flexibility in design and assembly.
  • The 09032966851 connector has an IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09032966851 Overview

Use the download button to access the 09032966851 schematic symbol, PCB footprint, and 3D model.
