09032966855 - HARTING

Description: DIN C female straight 96pin, 2.9mm tails, kinked pins, PL2

Download 09032966855 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09032966855 - HARTING - PCB symbol
click to zoom

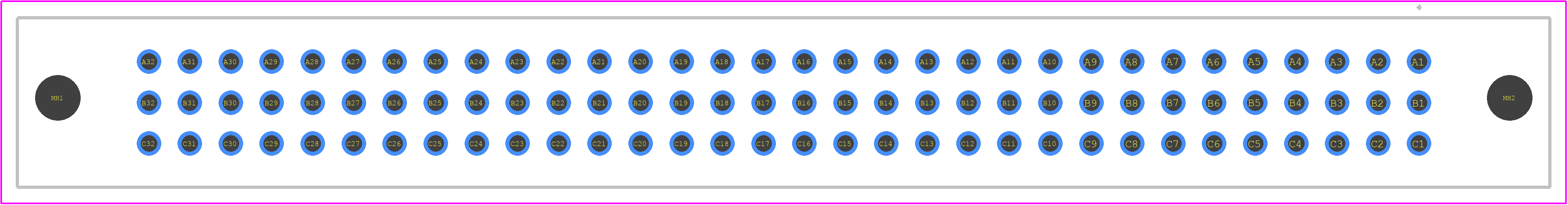

PCB Footprints
09032966855 - HARTING PCB footprint - Other - Other - 09032966855-20
click to zoom
3D Models
09032966855 - HARTING - 3D model - Other - 09032966855-20
click to zoom

09032966855 Details

  • Manufacturer Part Number:

    09032966855

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: DIN 41612

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    96

  • UL Flammability Code:

    94V-0

09032966855 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the connector is 0.5 Nm to 1.5 Nm, as specified in the HARTING application notes.
  • Yes, the 09032966855 connector is designed for outdoor use and can withstand environmental conditions such as rain, snow, and extreme temperatures.
  • Yes, the connector is designed to withstand high-vibration applications, such as those found in industrial machinery, transportation, and construction equipment.
  • The maximum operating temperature of the connector is 125°C, as specified in the datasheet.
  • Yes, the 09032966855 connector is part of the HARTING Han series and is compatible with other Han series connectors.
