09032966877 - HARTING

Description: Connectors, Female connector, Wave soldering termination, Rated current: ?2 A, Contacts: 96, Straight

Download 09032966877 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09032966877 - HARTING - PCB symbol
click to zoom
PCB Footprints

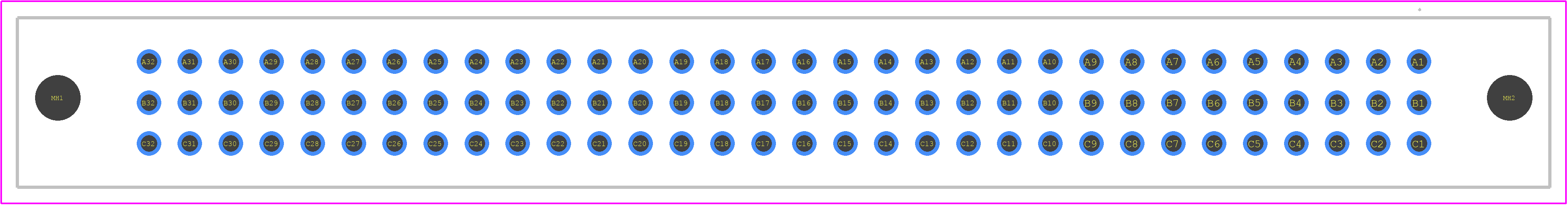

09032966877 - HARTING PCB footprint - Other - Other - 09032966877-20
click to zoom
3D Models
09032966877 - HARTING - 3D model - Other - 09032966877-20
click to zoom

09032966877 Details

  • Manufacturer Part Number:

    09032966877

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

09032966877 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09032966877 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09032966877 connector is designed to withstand high-vibration environments, with a vibration resistance of up to 10g according to IEC 61373 Cat. 2.
  • Yes, the 09032966877 connector is designed for outdoor use and can withstand harsh environmental conditions, including temperatures from -40°C to 125°C, and IP67 ingress protection.
  • The maximum current rating for the 09032966877 connector is 10A per contact, depending on the specific application and environmental conditions.
  • Yes, the 09032966877 connector is part of the HARTING Han series and is compatible with other Han series connectors, allowing for easy integration and mating.
