09032967850 - HARTING

Description: DIN C female straight 96pin, press-in 4.5mm tails, PL3

Download 09032967850 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09032967850 - HARTING - PCB symbol
click to zoom
PCB Footprints

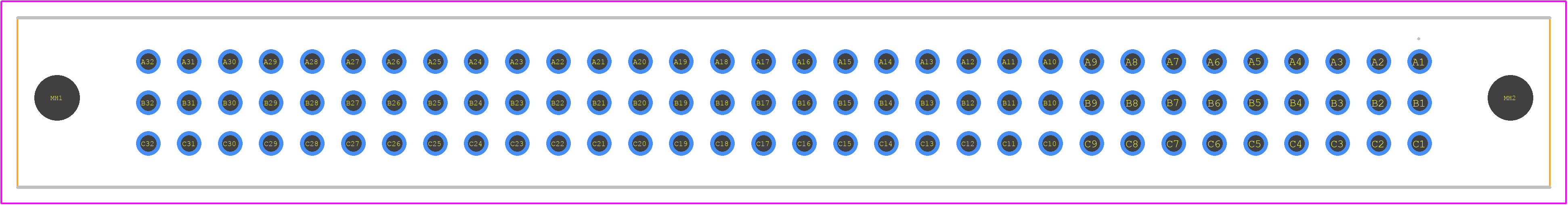

09032967850 - HARTING PCB footprint - Other - Other - 09032967850-10
click to zoom
3D Models
09032967850 - HARTING - 3D model - Other - 09032967850-10
click to zoom

09032967850 Details

  • Manufacturer Part Number:

    09032967850

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: DIN 41612

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    96

  • UL Flammability Code:

    94V-0

09032967850 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 09032967850 connector is -40°C to 125°C, making it suitable for use in a wide range of industrial and transportation applications.
  • Yes, the 09032967850 connector is designed to be used in harsh environments and is resistant to vibration, shock, and moisture. It also meets the requirements of IP67 and IP69K, making it suitable for use in applications where exposure to water and dust is a concern.
  • The mating cycle of the 09032967850 connector is 500 cycles, making it suitable for use in applications where frequent mating and unmating is required.
  • Yes, the 09032967850 connector is part of the HARTING Han series and is compatible with other Han series connectors, making it easy to integrate into existing systems and designs.
  • The 09032967850 connector uses a screw termination type, which provides a secure and reliable connection.
