09033966919 - HARTING

Description: DIN C male angled, 96pin, w/ board locks, PL2, THR/SMC

Download 09033966919 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09033966919 - HARTING - PCB symbol
click to zoom
PCB Footprints

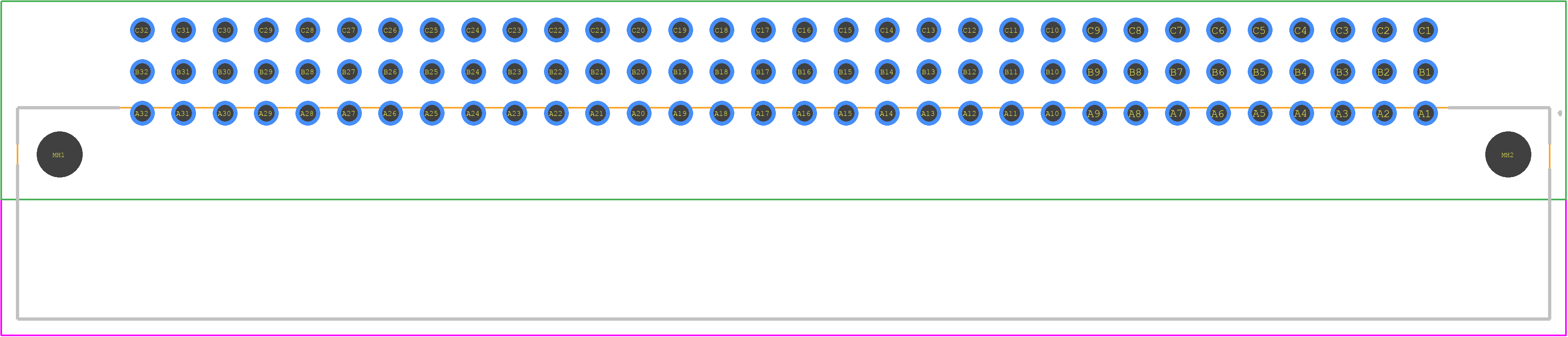

09033966919 - HARTING PCB footprint - Other - Other - 09033962919-20
click to zoom
3D Models
09033966919 - HARTING - 3D model - Other - 09033962919-20
click to zoom

09033966919 Details

  • Manufacturer Part Number:

    09033966919

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARDS: DIN 41612; IEC 60603-2

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    96

  • UL Flammability Code:

    94V-0

09033966919 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 09033966919 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09033966919 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Category 2, which includes vibration testing.
  • Yes, the 09033966919 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and a humidity range of 5% to 95% RH.
  • Yes, the 09033966919 connector is part of the HARTING Han series and is compatible with other Han connectors, allowing for easy integration into existing systems.
  • The maximum current rating of the 09033966919 connector is 40 A per contact, depending on the specific application and environmental conditions.
