09034646824 - HARTING

Description: DIN C female straight 64pin, w/ board locks, 2.9mm tails, PL2 (rows a,c loaded)

Download 09034646824 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09034646824 - HARTING - PCB symbol
click to zoom
PCB Footprints

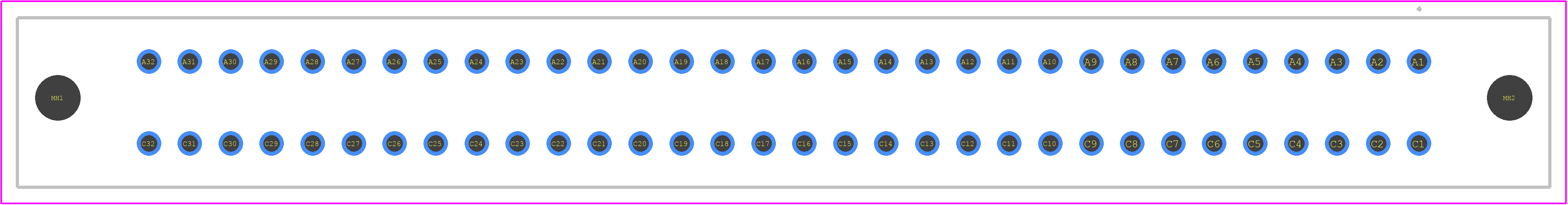

09034646824 - HARTING PCB footprint - Other - Other - 09034646824-10
click to zoom
3D Models
09034646824 - HARTING - 3D model - Other - 09034646824-10
click to zoom

09034646824 Details

  • Manufacturer Part Number:

    09034646824

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    POLARIZED

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    64

09034646824 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 09034646824 connector is -40°C to 125°C, making it suitable for use in a wide range of industrial and automotive applications.
  • Yes, the 09034646824 connector is designed to withstand vibration and shock according to IEC 61373 and DIN EN 61373, making it suitable for use in harsh environments.
  • Yes, the 09034646824 connector is designed to operate in high-humidity environments and meets the requirements of IEC 60529, IP67, and IP69K, making it suitable for use in wet or humid environments.
  • The 09034646824 connector has a mating cycle of 500 cycles, making it suitable for use in applications where frequent mating and unmating is required.
  • Yes, the 09034646824 connector is part of the HARTING Han series and is compatible with other Han series connectors, making it easy to integrate into existing systems.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09034646824 Overview

Use the download button to access the 09034646824 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09034, or try a keyword search, such as Headers and Edge Type Connectors
