09034962824 - HARTING

Description: DIN C female straight 96pin, w/ board locks, 2.9mm tails, PL1

Download 09034962824 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09034962824 - HARTING - PCB symbol
click to zoom
PCB Footprints

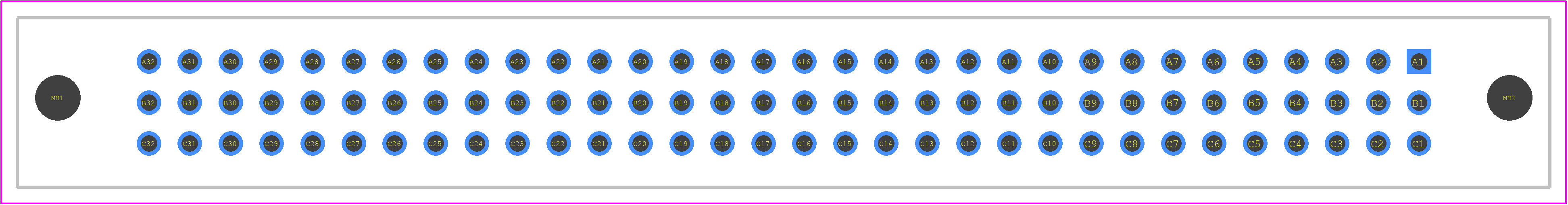

09034962824 - HARTING PCB footprint - Other - Other - 09034962824-31
click to zoom
3D Models
09034962824 - HARTING - 3D model - Other - 09034962824-31
click to zoom

09034962824 Details

  • Manufacturer Part Number:

    09034962824

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    96

09034962824 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09034962824 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09034962824 connector is designed to be used in harsh environments, including outdoor applications, and meets the IP67 rating for protection against dust and water ingress.
  • Yes, the 09034962824 connector is designed to withstand high-vibration environments, with a vibration resistance of up to 10g according to IEC 60068-2-6.
  • The 09034962824 connector has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications.
  • Yes, the 09034962824 connector is part of the HARTING Han series, which is a modular connector system that allows for easy mating and unmating of different connectors within the series.
