- Part Number 09041322921
- Manufacturer HARTING
- Pin Count 34
- Part Category Connector
- Package Category Other
- Footprint Name Other - 09041322921-4
- Released Date Sep 10, 2020
- Last Modified Date Apr 20, 2023 9:17 PM UTC
- Pinout / Pin List Click Here (Member Only)
09041322921 Details
-
Manufacturer Part Number:
09041322921
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
HARTING Technology Group
-
YTEOL:
7
-
Connector Type:
BOARD EURO CONNECTOR
09041322921 Frequently Asked Questions (FAQs)
-
The recommended torque for tightening the 09041322921 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
-
Yes, the 09041322921 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Category II.
-
Yes, the 09041322921 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and a humidity range of 5% to 95% RH.
-
Yes, the 09041322921 connector is part of the HARTING Han series and is compatible with other Han connectors, allowing for easy integration into existing systems.
-
The maximum current rating of the 09041322921 connector is 40 A per contact, depending on the specific application and environmental conditions.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
09041322921 Overview

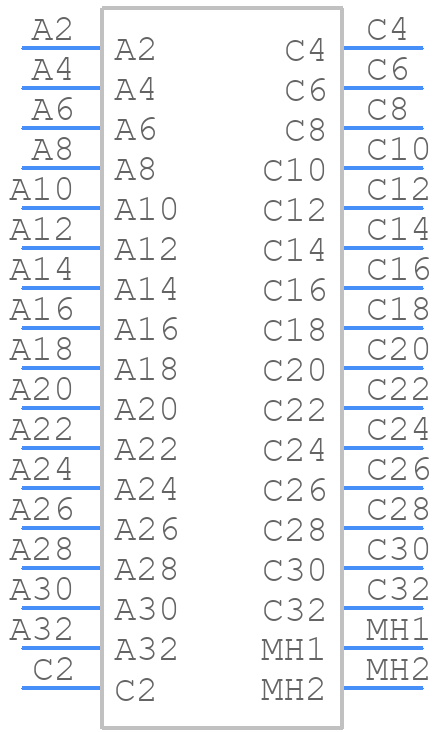

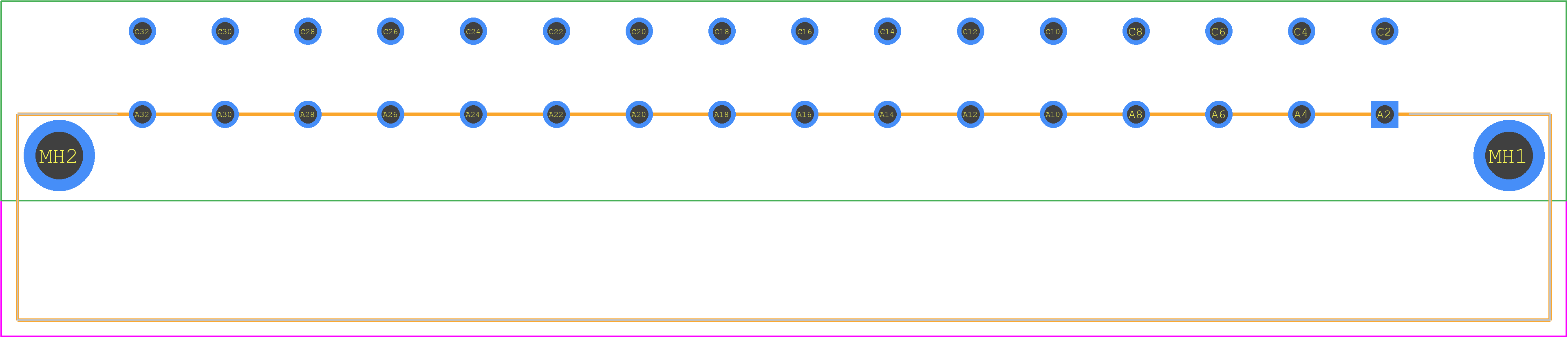

Use the download button to access the 09041322921 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09041,
or try a keyword search, such as Headers and Edge Type Connectors
