The recommended torque for tightening the 09042326832 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
Yes, the 09042326832 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Category 2, which includes vibration testing.
Yes, the 09042326832 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and a humidity range of 5% to 95% RH.
Yes, the 09042326832 connector is part of the HARTING Han series and is compatible with other Han connectors, allowing for flexibility in design and assembly.
The maximum current rating for the 09042326832 connector is 40 A per contact, depending on the specific application and environmental conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
09042326832 Overview

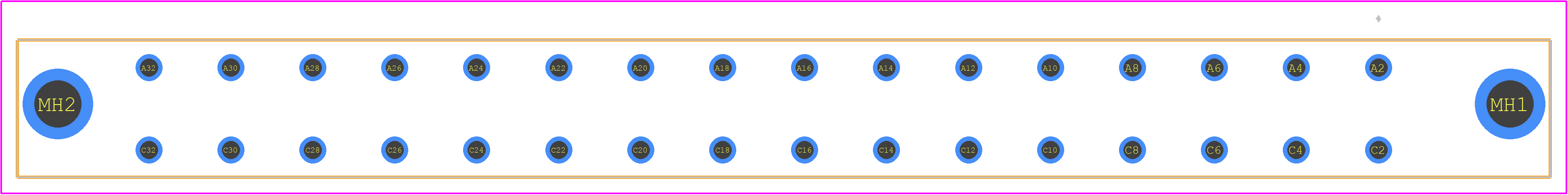

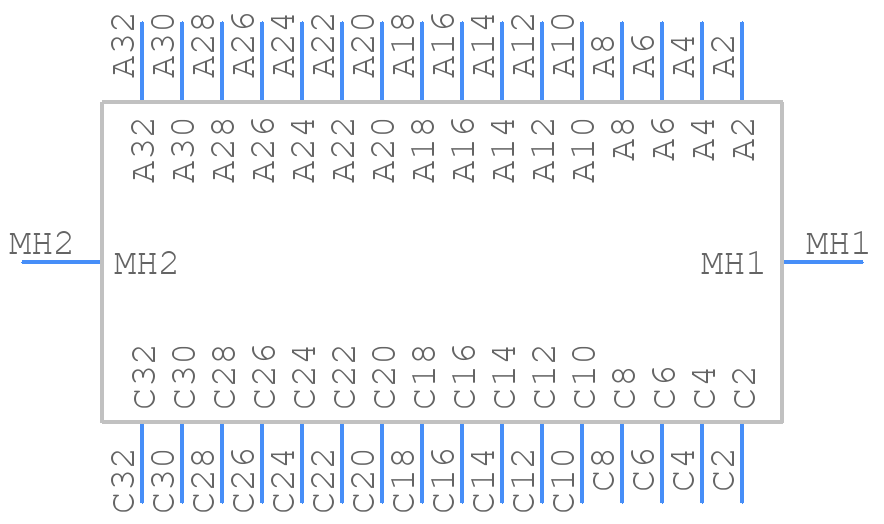

Use the download button to access the 09042326832 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09042,
or try a keyword search, such as Headers and Edge Type Connectors
