09042327832 - HARTING

Description: DIN D female straight 32pin, 2.9mm tails, PL3

Download 09042327832 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

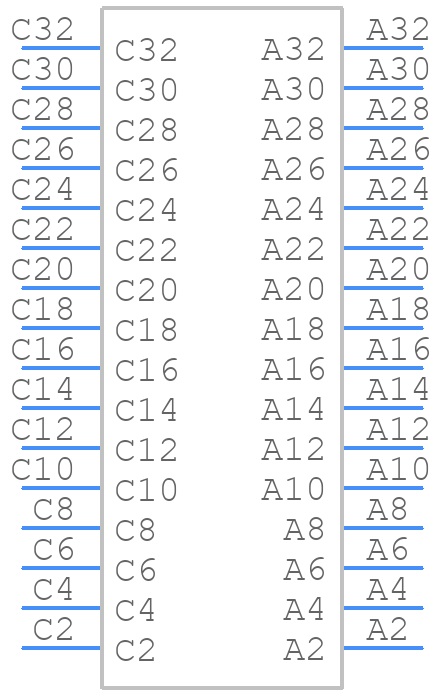

09042327832 - HARTING - PCB symbol
click to zoom
PCB Footprints

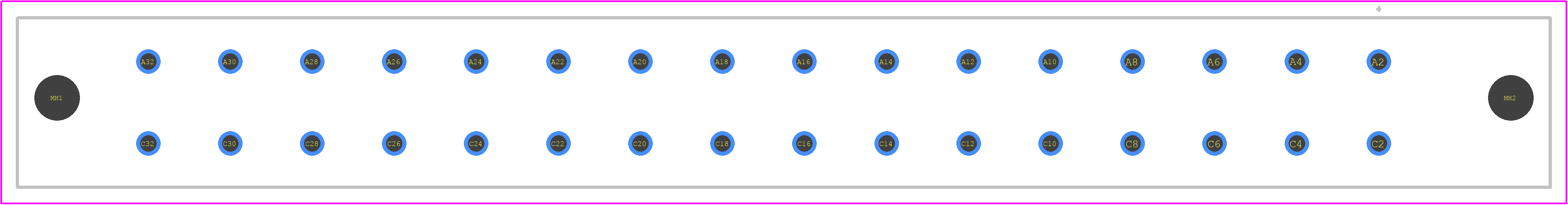

09042327832 - HARTING PCB footprint - Other - Other - 09042327832-10
click to zoom
3D Models
09042327832 - HARTING - 3D model - Other - 09042327832-10
click to zoom

09042327832 Details

  • Manufacturer Part Number:

    09042327832

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    7

  • Connector Type:

    BOARD EURO CONNECTOR

09042327832 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09042327832 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09042327832 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
  • Yes, the 09042327832 connector is designed to withstand high-vibration applications, such as those found in industrial machinery, transportation systems, and construction equipment.
  • The maximum operating temperature of the 09042327832 connector is 125°C, making it suitable for use in high-temperature applications.
  • Yes, the 09042327832 connector is part of the HARTING Han series and is compatible with other Han series connectors, allowing for easy integration into existing systems.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09042327832 Overview

Use the download button to access the 09042327832 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09042, or try a keyword search, such as Headers and Edge Type Connectors
