09043326919 - HARTING

Description: DIN D male angled 32pin, w/ board locks, PL2, THR/SMC

Download 09043326919 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

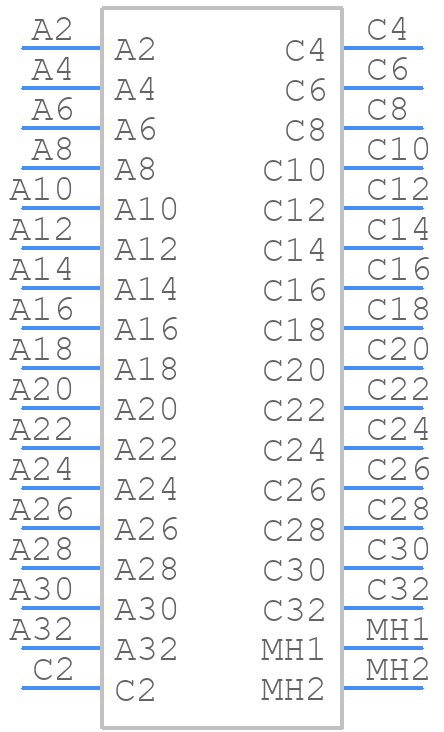

Symbol
09043326919 - HARTING - PCB symbol
click to zoom

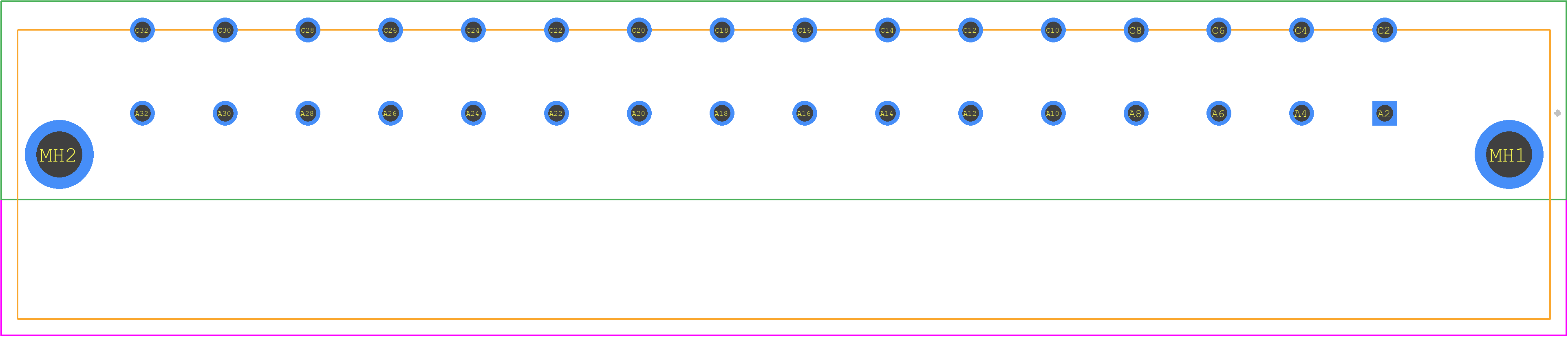

PCB Footprints
09043326919 - HARTING PCB footprint - Other - Other - 09043326919
click to zoom
3D Models
09043326919 - HARTING - 3D model - Other - 09043326919
click to zoom

09043326919 Details

  • Manufacturer Part Number:

    09043326919

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    7

  • Board Mounting Option:

    SPLIT BOARD LOCK

  • Body Breadth:

    0.429 inch

  • Body Depth:

    0.348 inch

  • Body Length:

    87.4 inch

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • Filter Feature:

    NO

  • Mating Contact Pitch:

    0.2 inch

  • Mating Contact Row Spacing:

    0.2 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    5.08 mm

  • Terminal Pitch:

    5.08 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    32

09043326919 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 09043326919 connector is -40°C to 125°C, making it suitable for use in a wide range of industrial and automotive applications.
  • Yes, the 09043326919 connector is designed to be used in harsh environments and meets the requirements of IP67 and IP69K, making it resistant to dust, water, and other contaminants.
  • The mating cycle of the 09043326919 connector is 500 cycles, making it suitable for use in applications where frequent mating and unmating is required.
  • Yes, the 09043326919 connector is designed to withstand high-vibration applications and meets the requirements of IEC 61373, making it suitable for use in applications such as rail and industrial machinery.
  • Yes, the 09043326919 connector is part of the HARTING Han series and is compatible with other Han series connectors, making it easy to integrate into existing systems.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09043326919 Overview

Use the download button to access the 09043326919 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09043, or try a keyword search, such as Headers and Edge Type Connectors
