09047326831 - HARTING

Description: DIN D female straight 32pin, w/ coding, 4.5mm tails, PL2

Download 09047326831 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

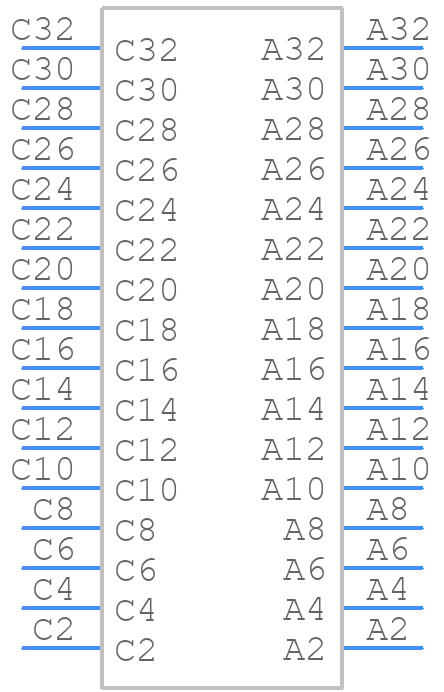

09047326831 - HARTING - PCB symbol
click to zoom
PCB Footprints

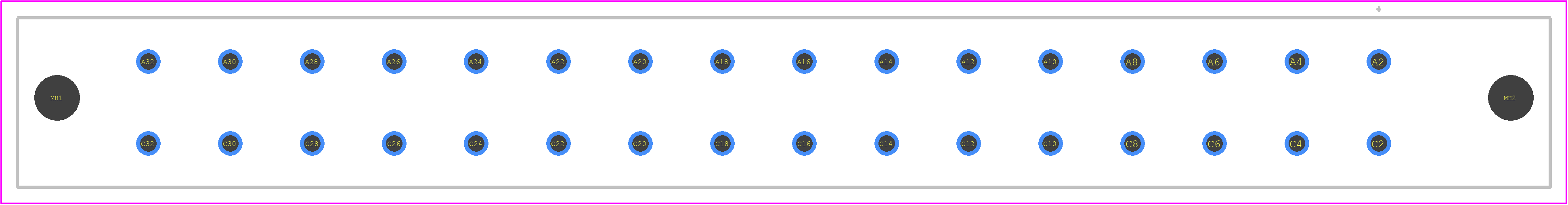

09047326831 - HARTING PCB footprint - Other - Other - 09047326831_1
click to zoom
3D Models
09047326831 - HARTING - 3D model - Other - 09047326831_1
click to zoom

09047326831 Details

  • Manufacturer Part Number:

    09047326831

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Option:

    GENERAL PURPOSE

09047326831 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 09047326831 connector is -40°C to 125°C, making it suitable for use in a wide range of industrial and automotive applications.
  • Yes, the 09047326831 connector is designed to withstand vibration and shock according to IEC 61373 Cat. 2 and EN 61373 Cat. 2, making it suitable for use in harsh environments.
  • Yes, the 09047326831 connector has an IP67 rating, which means it is protected against dust and water ingress, making it suitable for use in humid or wet environments.
  • The 09047326831 connector has a mating cycle of 500 cycles, making it suitable for use in applications where frequent mating and unmating is required.
  • Yes, the 09047326831 connector is part of the HARTING Han series, which is a modular connector system that allows for easy mating and unmating of different connectors within the series.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09047326831 Overview

Use the download button to access the 09047326831 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09047, or try a keyword search, such as Headers and Edge Type Connectors
