09047326832 - HARTING

Description: DIN D female straight 32pin, w/ coding, 2.9mm tails, PL2

Download 09047326832 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

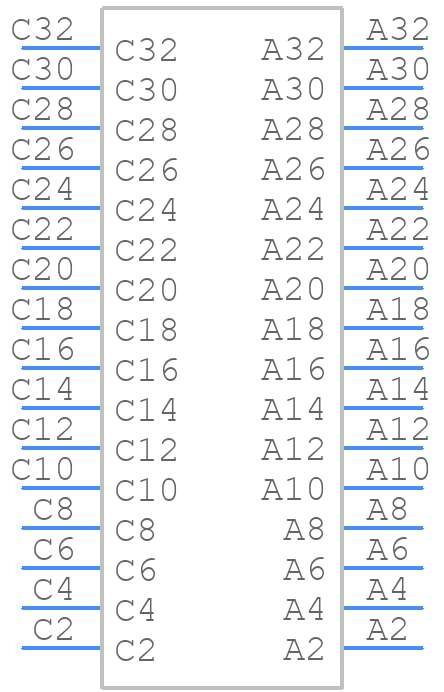

Symbol
09047326832 - HARTING - PCB symbol
click to zoom

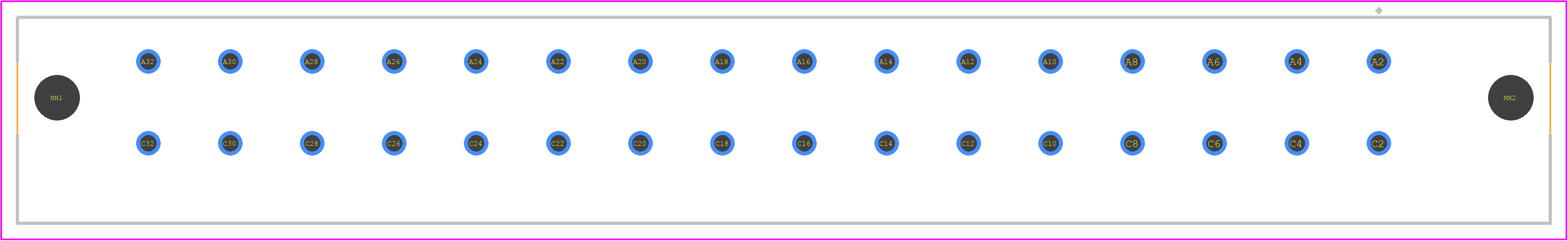

PCB Footprints
09047326832 - HARTING PCB footprint - Other - Other - 09047326832_1
click to zoom
3D Models
09047326832 - HARTING - 3D model - Other - 09047326832_1
click to zoom

09047326832 Details

  • Manufacturer Part Number:

    09047326832

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: DIN 41612, PANEL MOUNTABLE

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    5.08 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    32

  • UL Flammability Code:

    94V-0

09047326832 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 09047326832 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09047326832 connector is designed for outdoor use and can withstand harsh environmental conditions, including temperature extremes, humidity, and exposure to water and dust.
  • Yes, the 09047326832 connector is designed to withstand high-vibration environments and can be used in applications such as industrial machinery, transportation, and aerospace.
  • Yes, the 09047326832 connector is part of the HARTING Han series and is compatible with other Han series connectors, allowing for easy integration and interchangeability.
  • The maximum operating temperature of the 09047326832 connector is 125°C, making it suitable for use in high-temperature applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09047326832 Overview

Use the download button to access the 09047326832 schematic symbol, PCB footprint, and 3D model.
