Technical Content
Part Image

09051486920 - HARTING

Description: DIN E male angled 48pin, 2.54mm row separation, PL2, THR/SMC

Download 09051486920 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

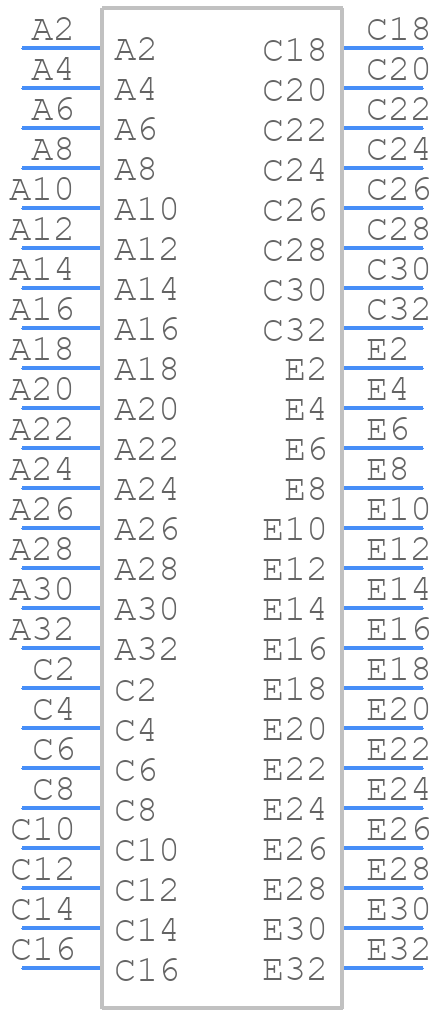

Symbol
09051486920 - HARTING - PCB symbol
click to zoom

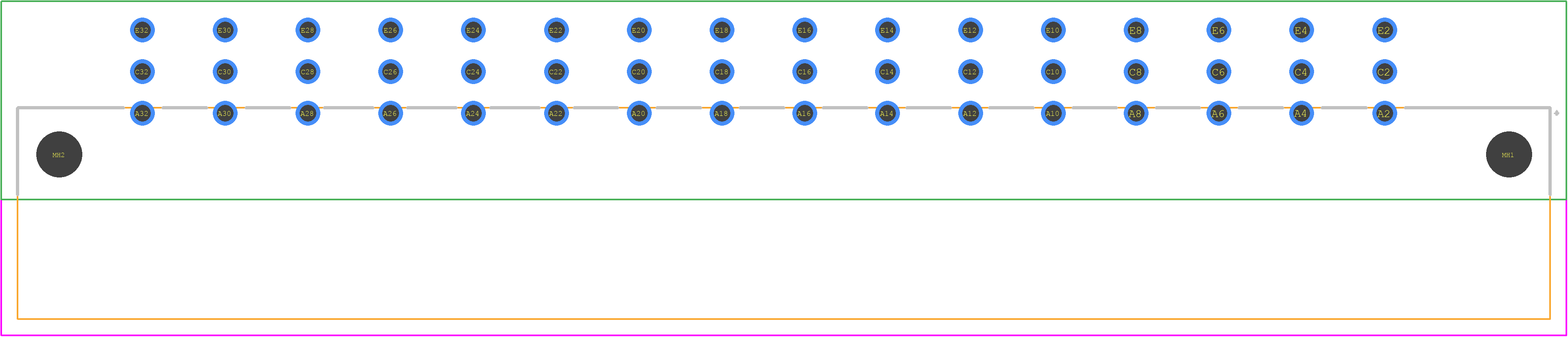

PCB Footprints
09051486920 - HARTING PCB footprint - Other - Other - 09051486920-3
click to zoom
3D Models
09051486920 - HARTING - 3D model - Other - 09051486920-3
click to zoom

09051486920 Details

  • Manufacturer Part Number:

    09051486920

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

09051486920 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09051486920 connector is 0.5 Nm to 1.5 Nm, as specified in the HARTING application notes.
  • Yes, the 09051486920 connector is suitable for outdoor use, as it has an IP67 rating, which means it is protected against dust and water ingress.
  • Yes, the 09051486920 connector is designed to withstand high vibrations and is suitable for use in applications with vibration levels up to 10g.
  • The maximum operating temperature of the 09051486920 connector is 125°C, as specified in the datasheet.
  • Yes, the 09051486920 connector is part of the HARTING Han series and is compatible with other Han series connectors.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09051486920 Overview

Use the download button to access the 09051486920 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09051, or try a keyword search, such as Headers and Edge Type Connectors
