09052482851 - HARTING

Description: DIN E female straight 48pin, press-in 11.5mm tails, PL1 Au (posts PL2 Au)

Download 09052482851 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

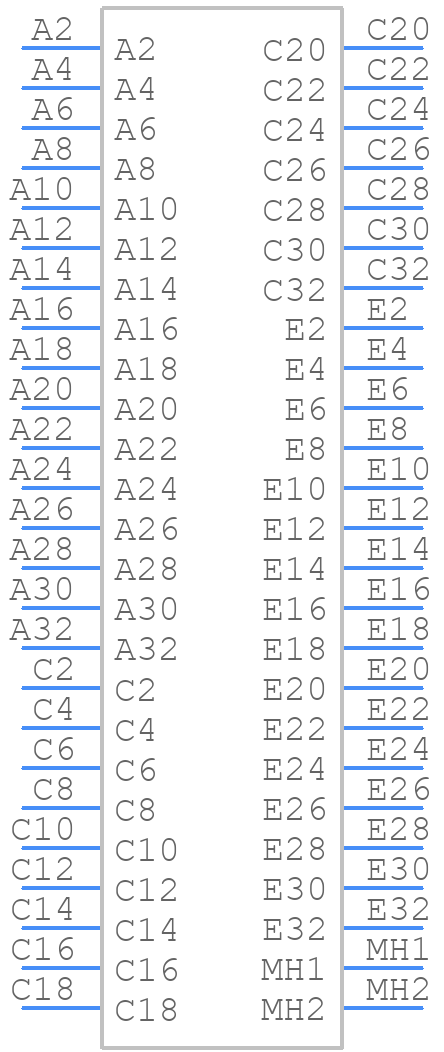

Symbol
09052482851 - HARTING - PCB symbol
click to zoom

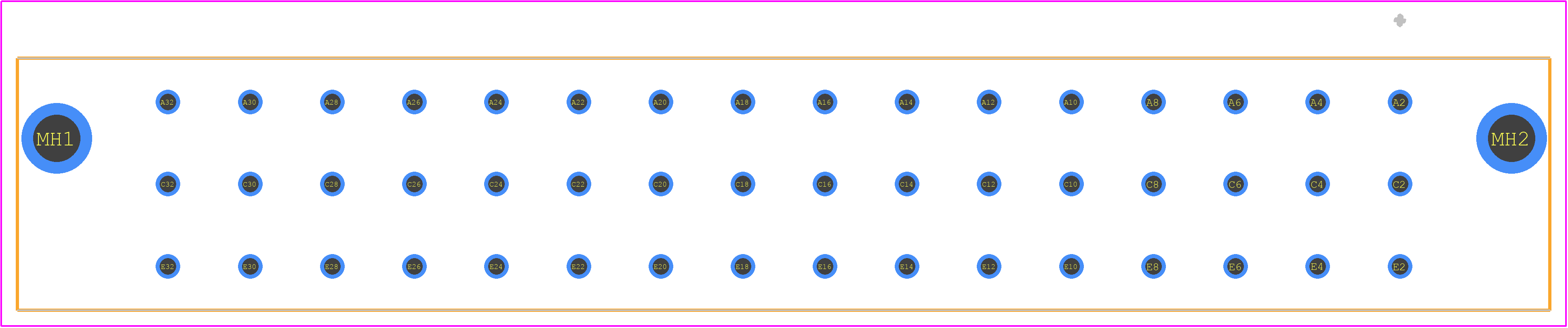

PCB Footprints
09052482851 - HARTING PCB footprint - Other - Other - 09052482851-1
click to zoom
3D Models
09052482851 - HARTING - 3D model - Other - 09052482851-1
click to zoom

09052482851 Details

  • Manufacturer Part Number:

    09052482851

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: DIN 41612, PANEL MOUNTABLE

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    5.08 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    48

  • UL Flammability Code:

    94V-0

09052482851 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09052482851 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09052482851 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
  • Yes, the 09052482851 connector is designed to withstand high-vibration applications, such as those found in industrial machinery, transportation systems, and construction equipment.
  • Yes, the 09052482851 connector is part of the HARTING Han series and is compatible with other Han series connectors, allowing for easy integration and interchangeability.
  • The maximum operating temperature of the 09052482851 connector is 125°C, making it suitable for use in high-temperature applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09052482851 Overview

Use the download button to access the 09052482851 schematic symbol, PCB footprint, and 3D model.
