09056482921 - HARTING

Description: DIN E male angled 48pin, 5.08mm row separation, w/ coding, PL1

Download 09056482921 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

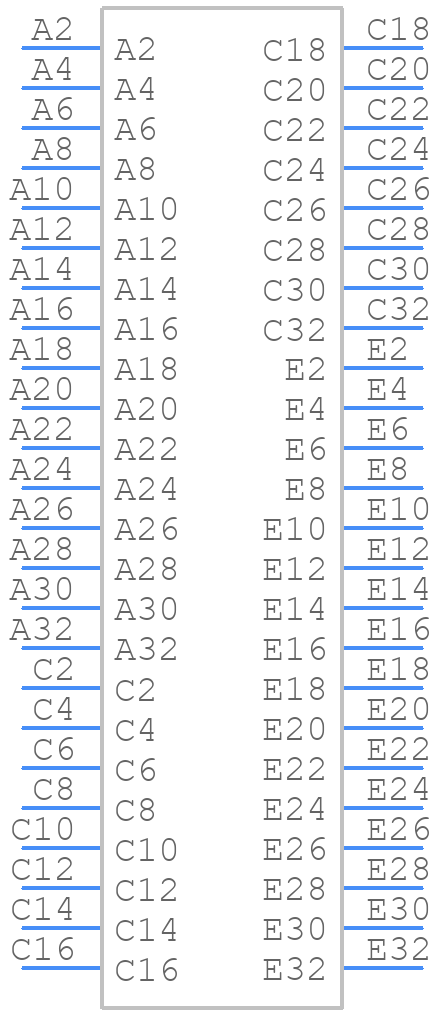

09056482921 - HARTING - PCB symbol
click to zoom
PCB Footprints

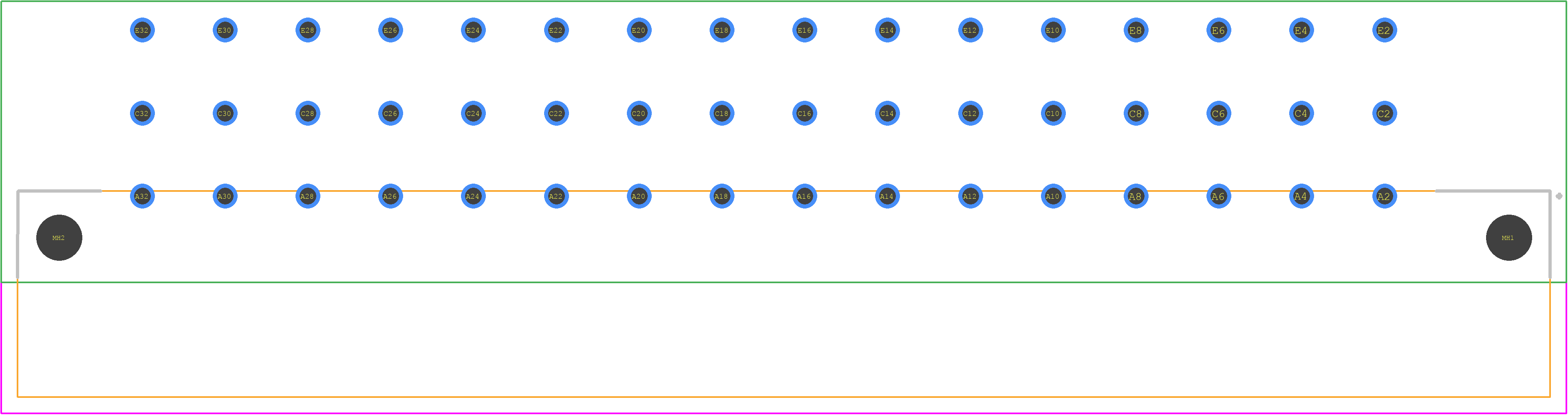

09056482921 - HARTING PCB footprint - Other - Other - 09056482921_2
click to zoom
3D Models
09056482921 - HARTING - 3D model - Other - 09056482921_2
click to zoom

09056482921 Details

  • Manufacturer Part Number:

    09056482921

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: DIN 41612

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    5.08 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    48

  • UL Flammability Code:

    94V-0

09056482921 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type. It's essential to follow the manufacturer's guidelines to ensure reliable connections.
  • Yes, the 09056482921 connector is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and secure the connector to the PCB or chassis to prevent damage or disconnection.
  • The 09056482921 connector has a IP67 rating, making it suitable for outdoor and harsh environmental applications. However, it's essential to follow the manufacturer's guidelines for sealing and protection to maintain the IP rating.
  • While the datasheet recommends AWG 20-24 wire sizes, it's possible to use other wire sizes with the 09056482921 connector. However, it's crucial to ensure the wire size and type are compatible with the connector's specifications and that the connections are secure and reliable.
  • The 09056482921 connector has an operating temperature range of -40°C to +125°C. However, it's essential to consider the temperature rating of the specific application and ensure the connector is suitable for the operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09056482921 Overview

Use the download button to access the 09056482921 schematic symbol, PCB footprint, and 3D model.
