09056486921 - HARTING

Description: DIN E male angled 48pin, 5.08mm row separation, w/ coding, PL2

Download 09056486921 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

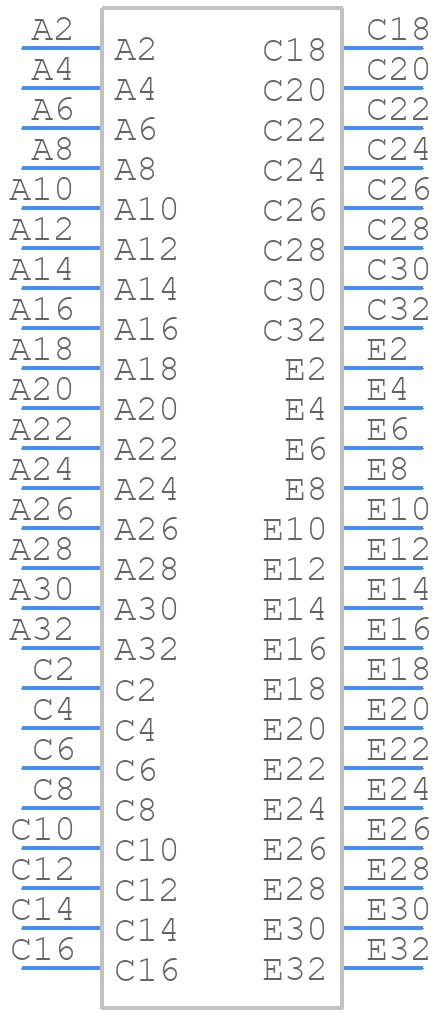

09056486921 - HARTING - PCB symbol
click to zoom
PCB Footprints

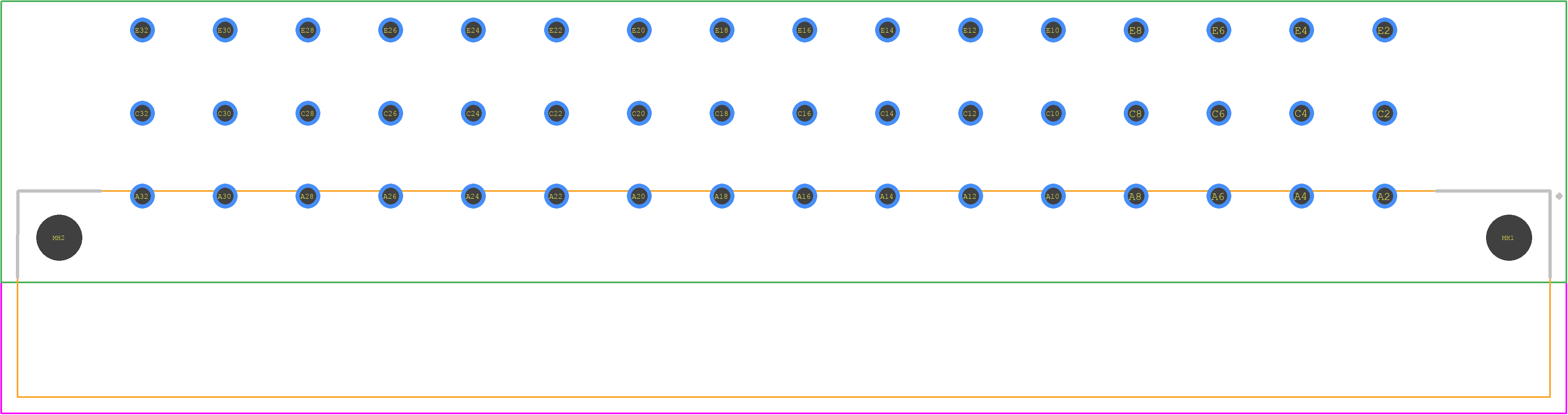

09056486921 - HARTING PCB footprint - Other - Other - 09056482921_2
click to zoom
3D Models
09056486921 - HARTING - 3D model - Other - 09056482921_2
click to zoom

09056486921 Details

  • Manufacturer Part Number:

    09056486921

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: DIN 41612

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    5.08 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    48

  • UL Flammability Code:

    94V-0

09056486921 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 09056486921 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09056486921 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Category II.
  • Yes, the 09056486921 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and humidity resistance up to 95% RH.
  • The 09056486921 connector has a mating cycle life of at least 500 cycles, making it suitable for applications that require frequent mating and unmating.
  • Yes, the 09056486921 connector is compatible with other HARTING connectors that have the same interface and mating dimensions.
