09060152914 - HARTING

Description: DIN H15 male straight 15pin, PL1 (leading pin z32)

Download 09060152914 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

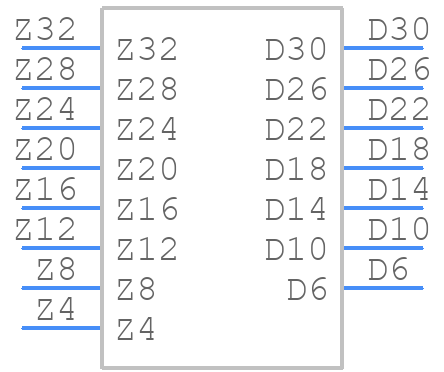

Symbol
09060152914 - HARTING - PCB symbol
click to zoom

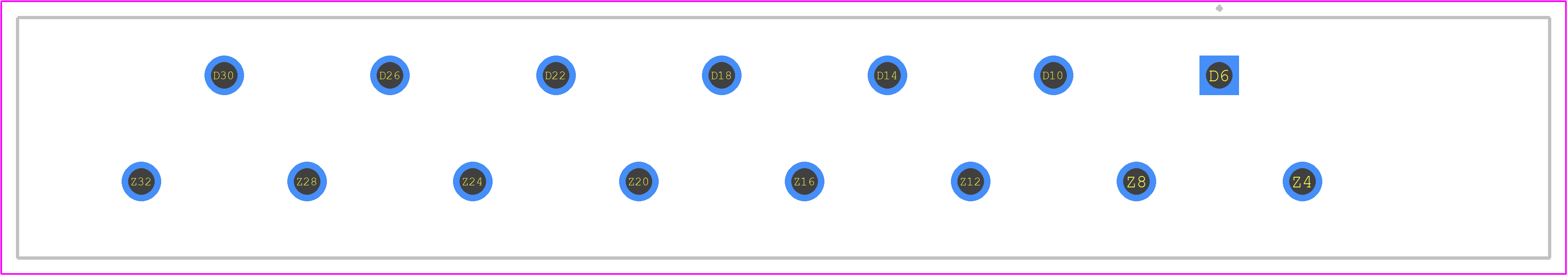

PCB Footprints
09060152914 - HARTING PCB footprint - Other - Other - 09060152914
click to zoom
3D Models
09060152914 - HARTING - 3D model - Other - 09060152914
click to zoom

09060152914 Details

  • Manufacturer Part Number:

    09060152914

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: DIN 41612

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Silver (Ag)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    YES

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    5.08 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    15

  • UL Flammability Code:

    94V-0

09060152914 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09060152914 connector is 0.5 Nm to 1.5 Nm, as specified in the HARTING application notes.
  • Yes, the 09060152914 connector is suitable for outdoor use, as it has an IP67 rating, which means it is protected against dust and water ingress.
  • Yes, the 09060152914 connector is designed to withstand high-vibration applications, with a vibration resistance of 10-2000 Hz, 10g acceleration.
  • The operating temperature range of the 09060152914 connector is -40°C to +125°C, making it suitable for use in a wide range of industrial and automotive applications.
  • The 09060152914 connector is designed to be compatible with other mating connectors that meet the IEC 61076-2-101 standard, but compatibility should be verified with the specific manufacturer and application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09060152914 Overview

Use the download button to access the 09060152914 schematic symbol, PCB footprint, and 3D model.
