09061152911222 - HARTING

09061152911222 Details

• Manufacturer Part Number:

  09061152911222

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Romania

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  HARTING Technology Group

• YTEOL:

  7

• Body Breadth:

  0.579 inch

• Body Depth:

  0.939 inch

• Body Length:

  3.699 inch

• Connector Type:

  BOARD EURO CONNECTOR

• Contact Arrangement:

  S0P15

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Finish Termination:

  Tin (Sn) - with Nickel (Ni) barrier

• Contact Gender:

  MALE

• Contact Material:

  COPPER ALLOY

• Contact Resistance:

  8 mΩ

• DIN Conformance:

  YES

• Durability:

  500 Cycles

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  100000000000 Ω

• Insulator Color:

  GRAY

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.4 inch

• Mating Contact Row Spacing:

  0.256 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Name of Rows Loaded:

  D,Z

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

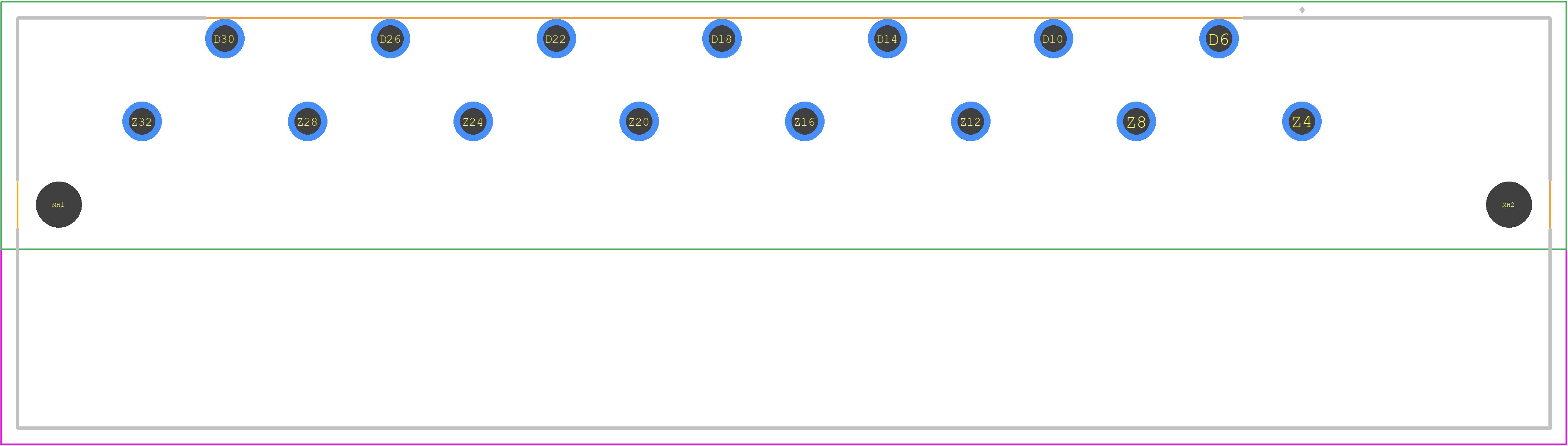

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  5.08 mm

• Polarization Key:

  POLARIZED HOUSING

• Reference Standard:

  UL

• Terminal Length:

  0.118 inch

• Terminal Pitch:

  10.16 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  15
