The recommended torque for screwing the 09061152932222 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
Yes, the 09061152932222 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
Yes, the 09061152932222 connector is designed to withstand high-vibration applications, such as those found in industrial machinery, transportation, and aerospace industries.
The maximum operating temperature range for the 09061152932222 connector is -40°C to 125°C, making it suitable for a wide range of applications.
Yes, the 09061152932222 connector is designed to be compatible with other HARTING products, including cables, adapters, and connectors, ensuring a seamless connection and reliable performance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
09061152932222 Overview

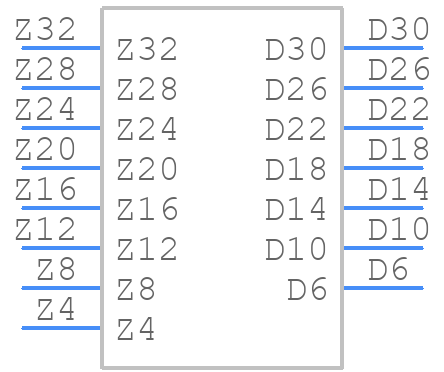

Use the download button to access the 09061152932222 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09061,
or try a keyword search, such as Headers and Edge Type Connectors
