09061152991 - HARTING

Description: DIN H15 male angled 15pin, PL1 Au plated, (leading pins z4,z32)

Download 09061152991 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

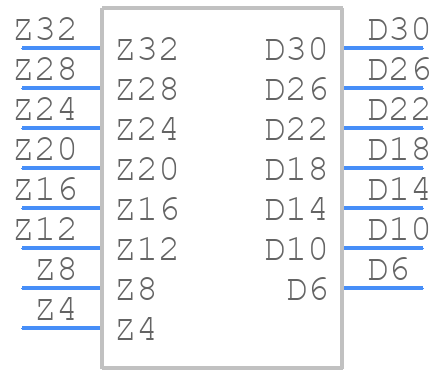

Symbol
09061152991 - HARTING - PCB symbol
click to zoom

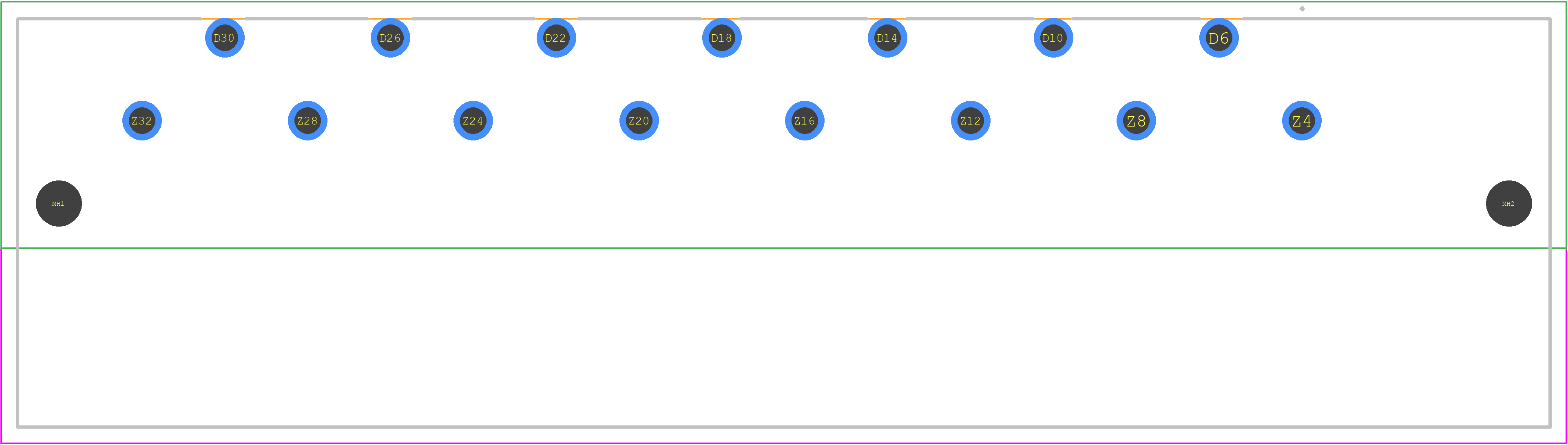

PCB Footprints
09061152991 - HARTING PCB footprint - Other - Other - 09061152991_0
click to zoom
3D Models
09061152991 - HARTING - 3D model - Other - 09061152991_0
click to zoom

09061152991 Details

  • Manufacturer Part Number:

    09061152991

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: DIN 41612

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    TIN OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    YES

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    5.08 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    15

  • UL Flammability Code:

    94V-0

09061152991 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 09061152991 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09061152991 connector is designed to withstand high-vibration environments and is suitable for use in applications such as industrial automation, transportation, and aerospace.
  • Yes, the 09061152991 connector is designed to operate in harsh environments, including temperatures ranging from -40°C to 125°C and humidity levels up to 95% RH.
  • Yes, the 09061152991 connector is part of the HARTING Han series and is compatible with other Han connectors and accessories, including hoods, housings, and contacts.
  • The maximum current rating of the 09061152991 connector is 40 A per contact, depending on the specific application and environmental conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09061152991 Overview

Use the download button to access the 09061152991 schematic symbol, PCB footprint, and 3D model.
