09061326901222 - HARTING

Description: DIN F male angled 32pin, PL2, NFF F1-I2 (rows b,z loaded)

Download 09061326901222 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

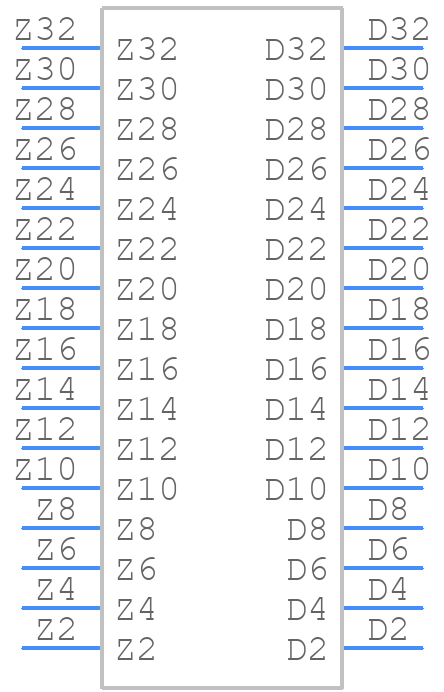

09061326901222 - HARTING - PCB symbol
click to zoom
PCB Footprints

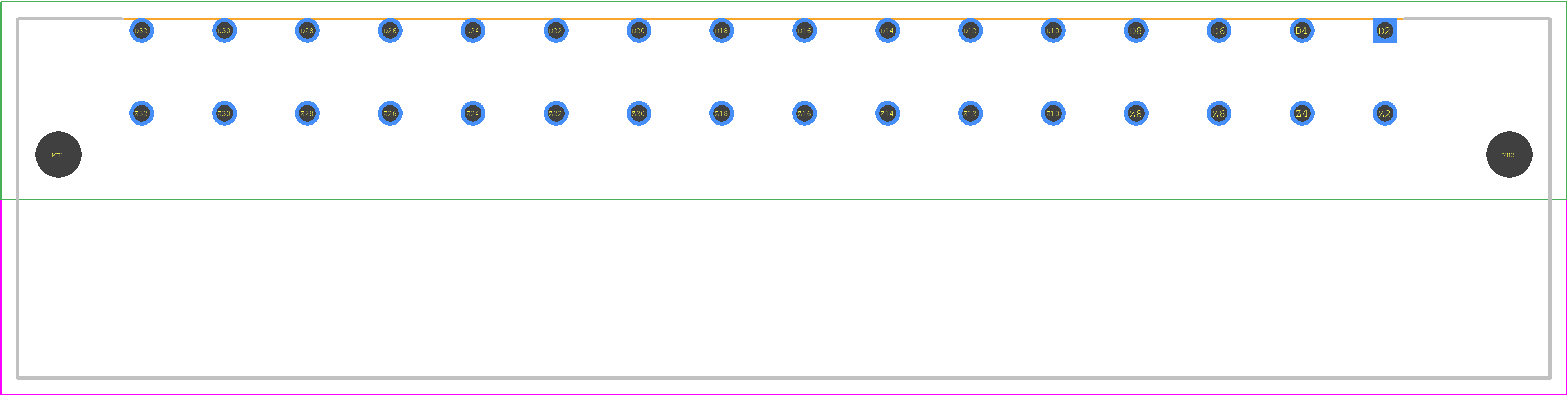

09061326901222 - HARTING PCB footprint - Other - Other - 09061326901222_1
click to zoom
3D Models
09061326901222 - HARTING - 3D model - Other - 09061326901222_1
click to zoom

09061326901222 Details

  • Manufacturer Part Number:

    09061326901222

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09061326901222 Overview

Use the download button to access the 09061326901222 schematic symbol, PCB footprint, and 3D model.
