09061326931222 - HARTING

Description: DIN F male angled 32pin, PL2, NFF F1-I2 (rows d,z loaded)

Download 09061326931222 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

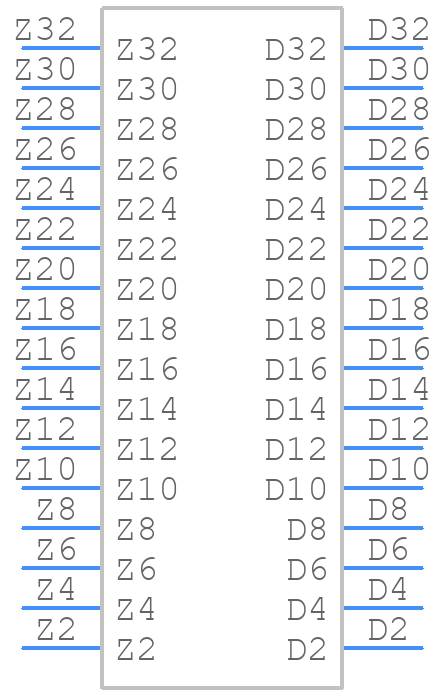

09061326931222 - HARTING - PCB symbol
click to zoom
PCB Footprints

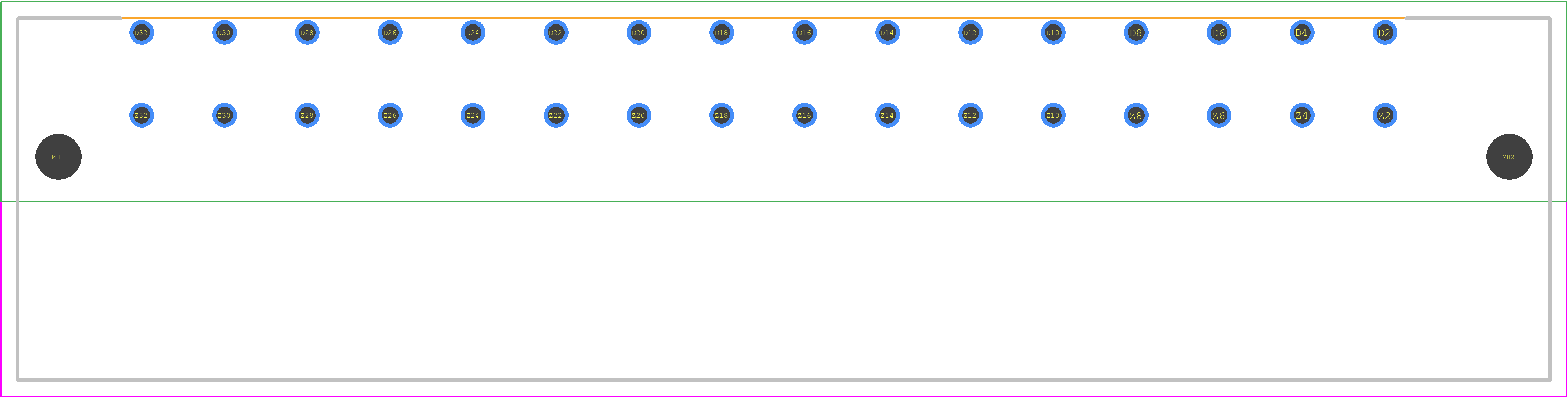

09061326931222 - HARTING PCB footprint - Other - Other - 09061326931222-23
click to zoom
3D Models
09061326931222 - HARTING - 3D model - Other - 09061326931222-23
click to zoom

09061326931222 Details

  • Manufacturer Part Number:

    09061326931222

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

09061326931222 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm, as specified in the HARTING application notes.
  • Yes, the 09061326931222 connector is designed to withstand high vibrations and is suitable for use in applications with intense vibrations, such as in industrial or transportation environments.
  • The 09061326931222 connector is designed to be compatible with other manufacturers' mating connectors that meet the IEC 61076-2-101 standard, but compatibility should be verified before use.
  • The 09061326931222 connector is designed to operate in temperatures ranging from -40°C to 125°C, making it suitable for use in a wide range of applications.
  • The 09061326931222 connector is designed to be resistant to corrosion and can withstand exposure to moisture and certain chemicals, but the specific environment should be evaluated to ensure compatibility.
