09061484901 - HARTING

Description: DIN F male angled 48pin, PLS6/VG (63uin Au plating)

Download 09061484901 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

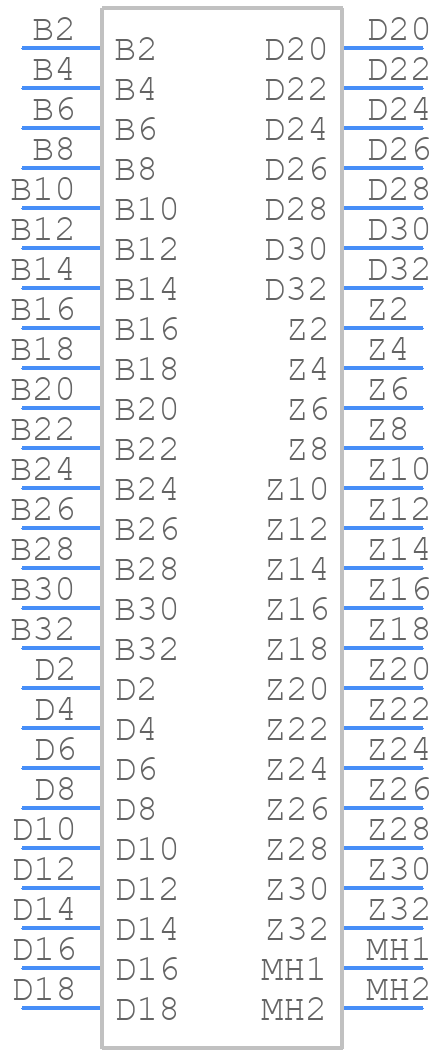

09061484901 - HARTING - PCB symbol
click to zoom
PCB Footprints

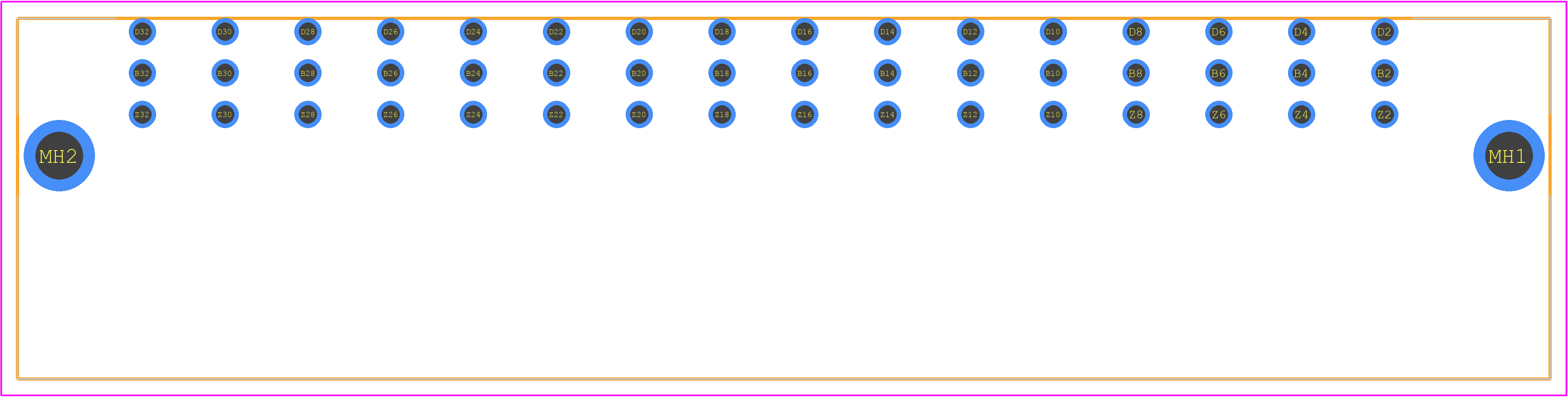

09061484901 - HARTING PCB footprint - Other - Other - 09061484901-1
click to zoom
3D Models
09061484901 - HARTING - 3D model - Other - 09061484901-1
click to zoom

09061484901 Details

  • Manufacturer Part Number:

    09061484901

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    0

  • Additional Feature:

    STANDARD: IEC 60603-2

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Gender:

    MALE

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    5.08 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    48
