STANDARD: DIN 41612, LOW PROFILE, STAGGERED CONFIGURATION
Connector Type:
BOARD EURO CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
YES
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
5.08 mm
Termination Type:
PRESS FIT
Total Number of Contacts:
15
09062152854222 Frequently Asked Questions (FAQs)
The recommended torque for screwing the connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
Yes, the 09062152854222 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
Yes, the connector is designed to withstand high-vibration applications, such as those found in industrial machinery, transportation, and construction equipment.
The maximum operating temperature range for this connector is -40°C to 125°C, making it suitable for use in a wide range of applications.
Yes, the 09062152854222 connector is designed to be compatible with other HARTING products, including cables, adapters, and connectors, ensuring seamless integration and compatibility.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
09062152854222 Overview

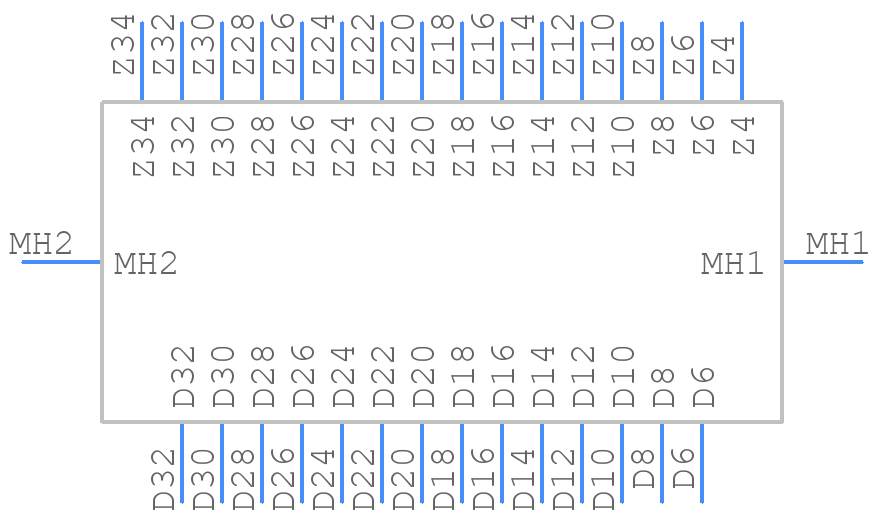

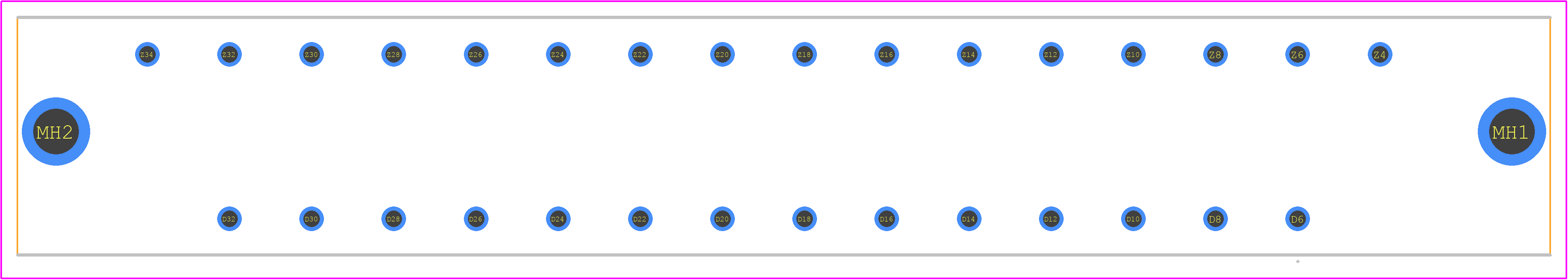

Use the download button to access the 09062152854222 schematic symbol, PCB footprint, and 3D model.
