09062322832 - HARTING

09062322832 Details

• Manufacturer Part Number:

  09062322832

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Romania

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  HARTING Technology Group

• YTEOL:

  8

• Additional Feature:

  STANDARD: IEC 60603-2

• Body Breadth:

  0.583 inch

• Body Depth:

  0.398 inch

• Body Length:

  3.74 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  BOARD EURO CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  TIN OVER NICKEL

• Contact Gender:

  FEMALE

• Contact Material:

  NOT SPECIFIED

• Contact Resistance:

  15 mΩ

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  YES

• Dielectric Withstanding Voltage:

  1550VAC V

• Durability:

  500 Cycles

• Filter Feature:

  NO

• IEC Conformance:

  YES

• Insertion Force-Max:

  1.5568 N

• Insulation Resistance:

  1000000000000 Ω

• Insulator Material:

  GLASS FILLED POLYETHYLENE

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.2 inch

• Mating Contact Row Spacing:

  0.15 inch

• Mixed Contacts:

  NO

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Name of Rows Loaded:

  Z,B

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  3

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -65 °C

• Option:

  GENERAL PURPOSE

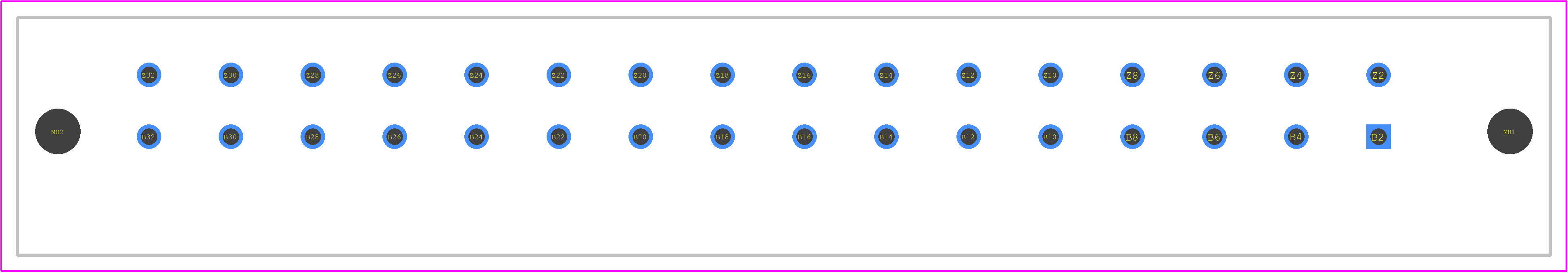

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  3.81 mm

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  6 A

• Reference Standard:

  VDE,CSA

• Terminal Length:

  0.216 inch

• Terminal Pitch:

  5.08 mm

• Termination Type:

  PRESS FIT

• Total Number of Contacts:

  32

• Withdrawl Force-Min:

  1.5568 N
