09062326834 - HARTING

Description: DIN F female straight 32pin low profile, 4.5mm tails, PL2 (rows b,z loaded)

Download 09062326834 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

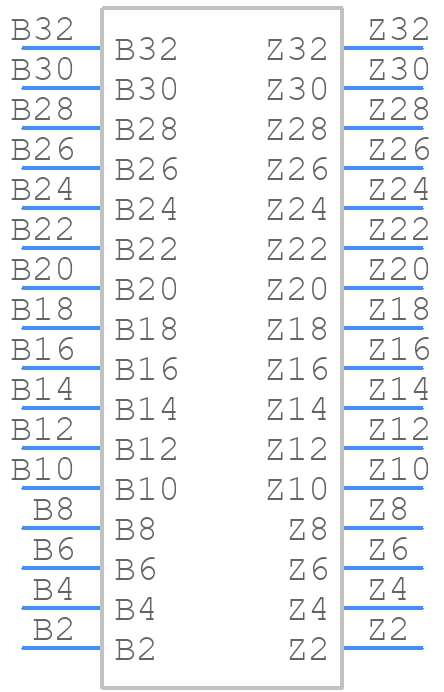

09062326834 - HARTING - PCB symbol
click to zoom
PCB Footprints

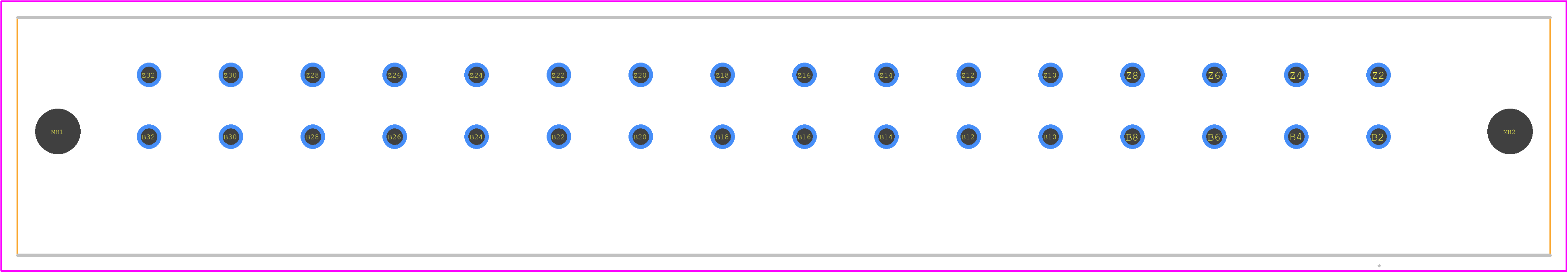

09062326834 - HARTING PCB footprint - Other - Other - 09062326834-33
click to zoom
3D Models
09062326834 - HARTING - 3D model - Other - 09062326834-33
click to zoom

09062326834 Details

  • Manufacturer Part Number:

    09062326834

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Empty Shell:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYETHYLENE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Option:

    GENERAL PURPOSE

09062326834 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09062326834 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09062326834 connector is designed to withstand high-vibration environments, with a vibration resistance of up to 10g (according to IEC 60068-2-6). However, it's recommended to consult with HARTING's technical support for specific application guidance.
  • The 09062326834 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and humidity levels (up to 95% RH). However, it's essential to consult the datasheet and HARTING's technical support for specific guidance on environmental considerations.
  • The 09062326834 connector has a mating cycle life of at least 500 cycles, depending on the specific application and environmental conditions. However, it's recommended to consult with HARTING's technical support for specific guidance on mating cycle life.
  • The 09062326834 connector is designed to be compatible with other HARTING connectors and products. However, compatibility with third-party products should be verified through testing and consultation with HARTING's technical support.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09062326834 Overview

Use the download button to access the 09062326834 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09062, or try a keyword search, such as Headers and Edge Type Connectors
