09062326893 - HARTING

Description: DIN F female straight 32pin low profile, 3.7mm tails, PL2 (rows d,z loaded)

Download 09062326893 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

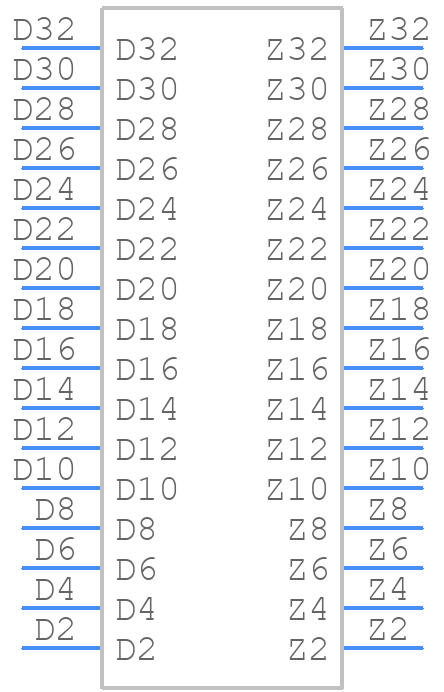

09062326893 - HARTING - PCB symbol
click to zoom
PCB Footprints

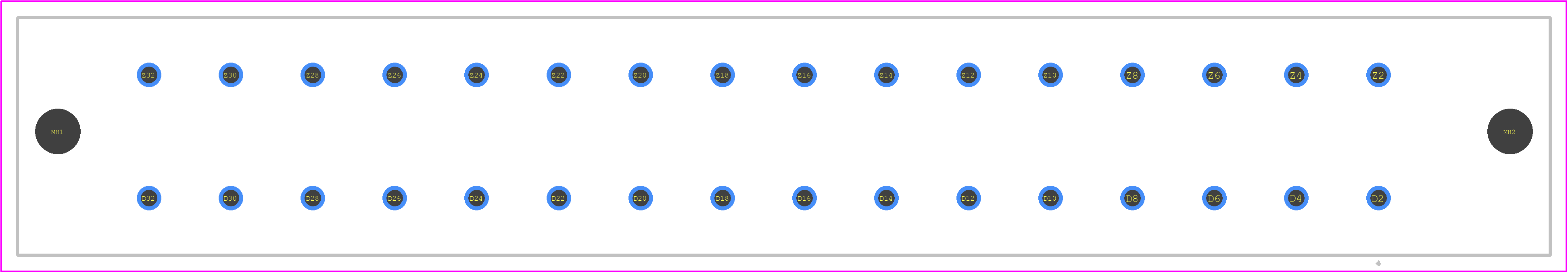

09062326893 - HARTING PCB footprint - Other - Other - 09062326893-13
click to zoom
3D Models
09062326893 - HARTING - 3D model - Other - 09062326893-13
click to zoom

09062326893 Details

  • Manufacturer Part Number:

    09062326893

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Additional Feature:

    STANDARD: DIN 41612

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYETHYLENE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    32

  • UL Flammability Code:

    94V-0

09062326893 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09062326893 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09062326893 connector is designed to withstand high-vibration environments, with a tested vibration resistance of up to 10g (according to IEC 60068-2-6).
  • Yes, the 09062326893 connector is designed to operate in harsh environments, with a temperature range of -40°C to +125°C and humidity resistance up to 95% RH (according to IEC 60068-2-78).
  • The 09062326893 connector has a mating cycle life of at least 500 cycles, depending on the specific application and environmental conditions.
  • The 09062326893 connector is designed to be compatible with other HARTING connectors in the same series, but it's recommended to check the specific compatibility with other connectors before use.
