09062482821222 - HARTING

Description: Female connector, Wrap termination, Rated current: ‌6 A, Contacts: 48, Straight, Copper alloy, Noble metal over Ni, Mating side, Ni, Termination side, Performance level: 1, acc. to IEC 60603-2, Coding: Hole coding, Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7035 (light grey)

Download 09062482821222 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

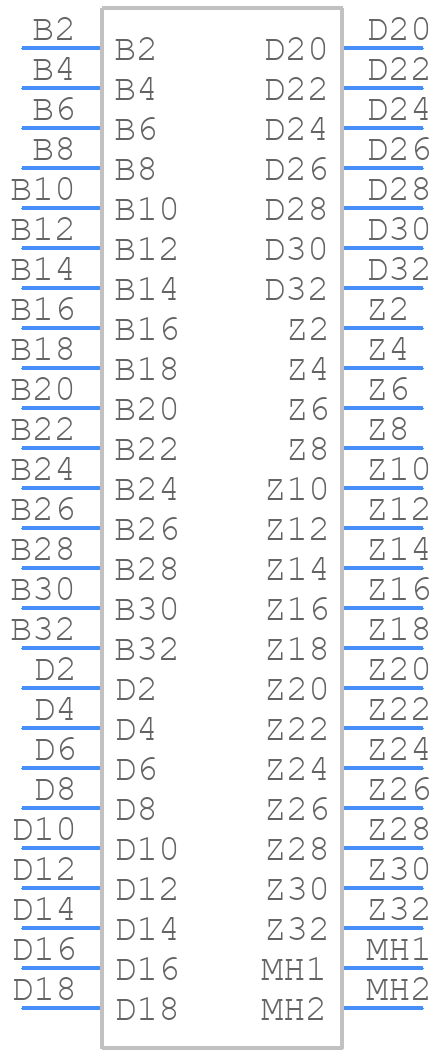

09062482821222 - HARTING - PCB symbol
click to zoom
PCB Footprints

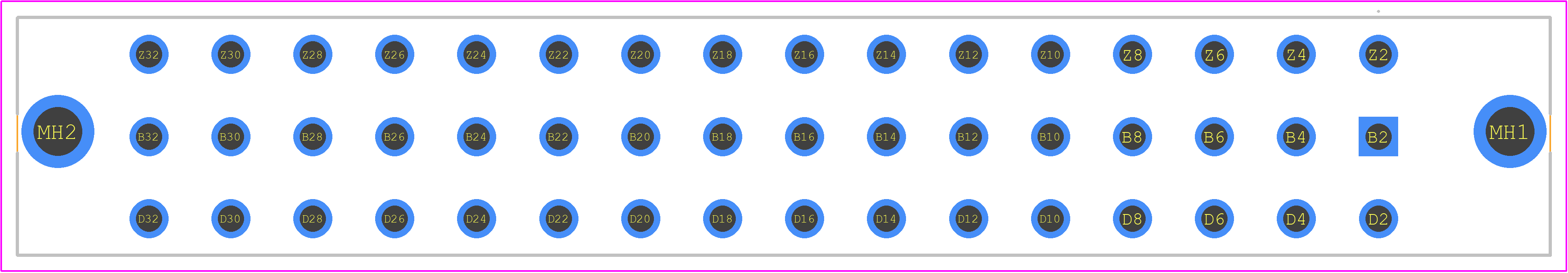

09062482821222 - HARTING PCB footprint - Other - Other - 09062482821222-1
click to zoom
3D Models
09062482821222 - HARTING - 3D model - Other - 09062482821222-1
click to zoom

09062482821222 Details

  • Manufacturer Part Number:

    09062482821222

  • Manufacturer:

    HARTING Technology Group

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09062482821222 Overview

Use the download button to access the 09062482821222 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09062, or try a keyword search, such as Headers and Edge Type Connectors
