09062486833 - HARTING

Description: DIN F female straight 48pin low profile, 3.7mm tails, PL2

Download 09062486833 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

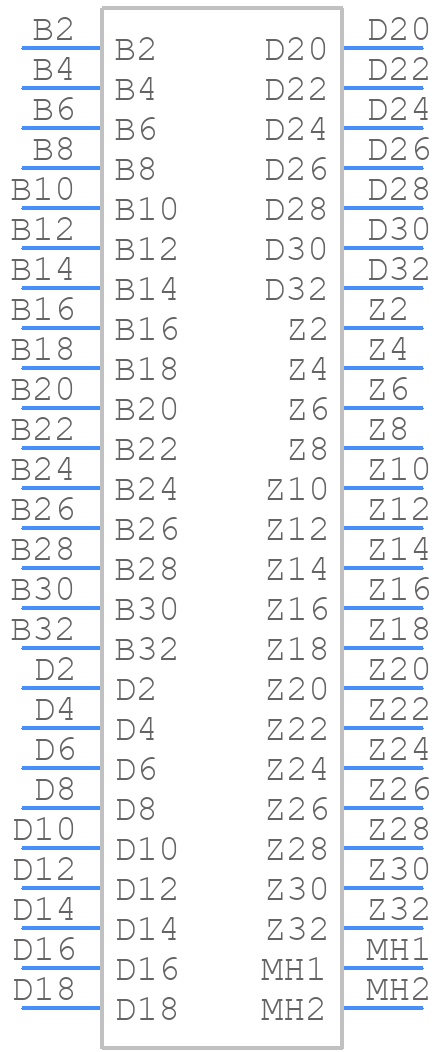

09062486833 - HARTING - PCB symbol
click to zoom
PCB Footprints

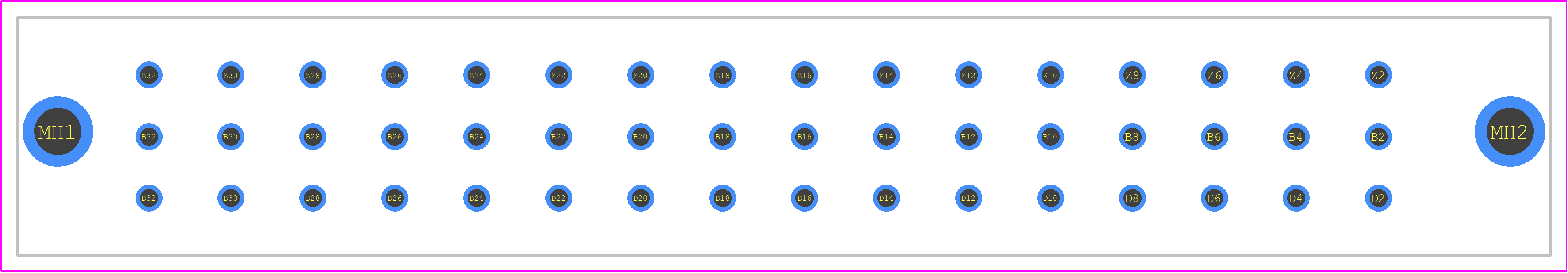

09062486833 - HARTING PCB footprint - Other - Other - 09062486833-5
click to zoom
3D Models
09062486833 - HARTING - 3D model - Other - 09062486833-5
click to zoom

09062486833 Details

  • Manufacturer Part Number:

    09062486833

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: DIN 41612

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    GLASS FILLED POLYETHYLENE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    48

  • UL Flammability Code:

    94V-0

09062486833 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 09062486833 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09062486833 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Category 2.
  • Yes, the 09062486833 connector is designed to operate in harsh environments, including temperatures ranging from -40°C to 125°C and humidity up to 95% RH.
  • Yes, the 09062486833 connector is compatible with other HARTING connectors, including the Han series, and can be used in conjunction with them.
  • The maximum current rating of the 09062486833 connector is 40 A per contact, depending on the specific application and environmental conditions.
