09062486833222 - HARTING

Description: DIN F female straight 48pin low profile, 3.7mm tails, PL2, NFF F1-I2

Download 09062486833222 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

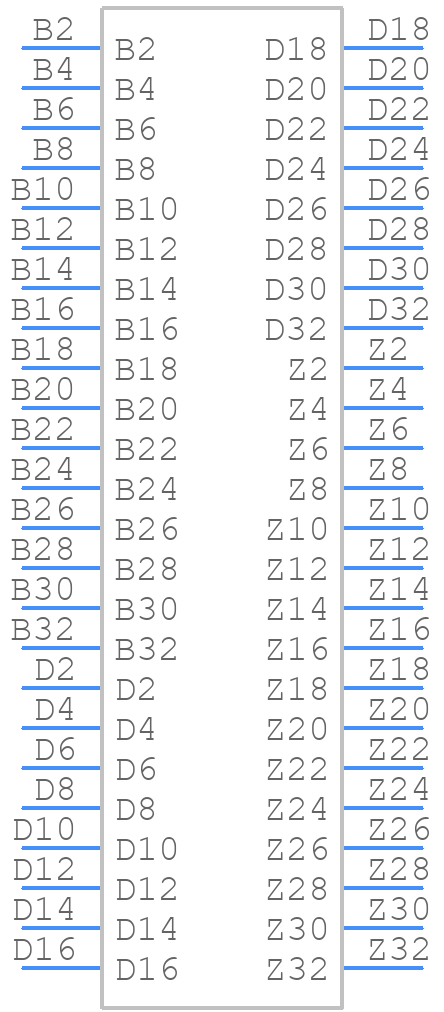

09062486833222 - HARTING - PCB symbol
click to zoom
PCB Footprints

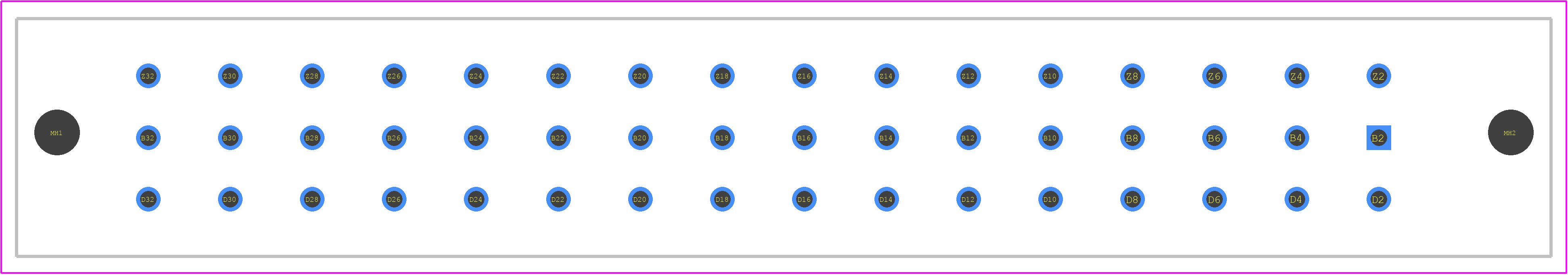

09062486833222 - HARTING PCB footprint - Other - Other - 09062486833222_1
click to zoom
3D Models
09062486833222 - HARTING - 3D model - Other - 09062486833222_1
click to zoom

09062486833222 Details

  • Manufacturer Part Number:

    09062486833222

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

09062486833222 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 09062486833222 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09062486833222 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Cat. 1, Class B.
  • Yes, the 09062486833222 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and humidity up to 95% RH.
  • Yes, the 09062486833222 connector is compatible with other HARTING connectors, including the Han series, and can be used in conjunction with them.
  • The maximum current rating of the 09062486833222 connector is 40 A per contact, depending on the specific application and environmental conditions.
