09062486838 - HARTING

Description: DIN 41612 Connectors DIN-POWER FLOW048FP-13,0C1-2

Download 09062486838 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

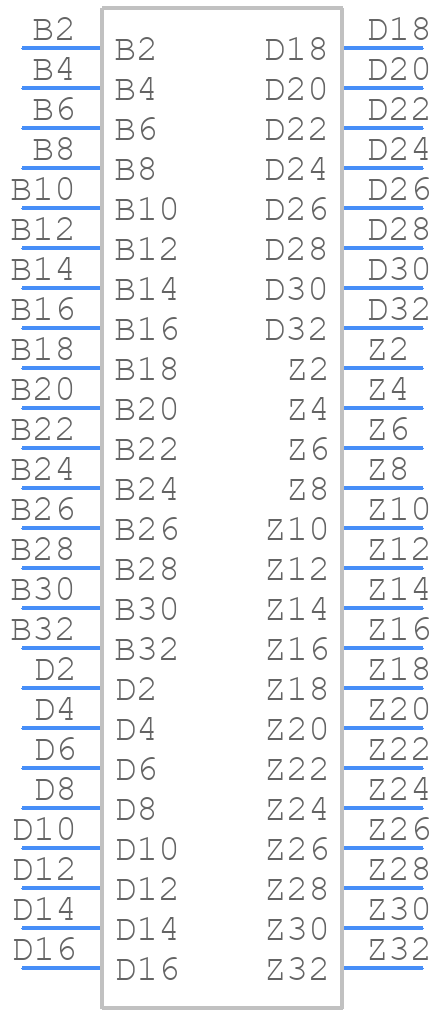

09062486838 - HARTING - PCB symbol
click to zoom
PCB Footprints

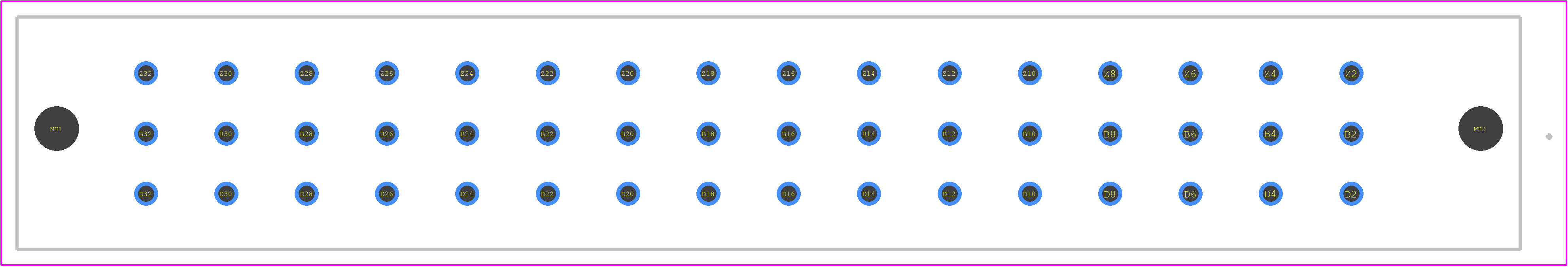

09062486838 - HARTING PCB footprint - Other - Other - 09062486838-33
click to zoom
3D Models
09062486838 - HARTING - 3D model - Other - 09062486838-33
click to zoom

09062486838 Details

  • Manufacturer Part Number:

    09062486838

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

09062486838 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the connector is 0.5 Nm to 1.5 Nm, as specified in the HARTING application notes.
  • Yes, the 09062486838 connector is designed for outdoor use and can withstand environmental conditions such as rain, snow, and extreme temperatures.
  • Yes, the connector is designed to withstand high-vibration applications, such as those found in industrial machinery, transportation, and construction equipment.
  • The maximum operating temperature of the connector is 125°C, as specified in the datasheet.
  • Yes, the 09062486838 connector is part of the HARTING Han series and is compatible with other Han series connectors.
