09063152821 - HARTING

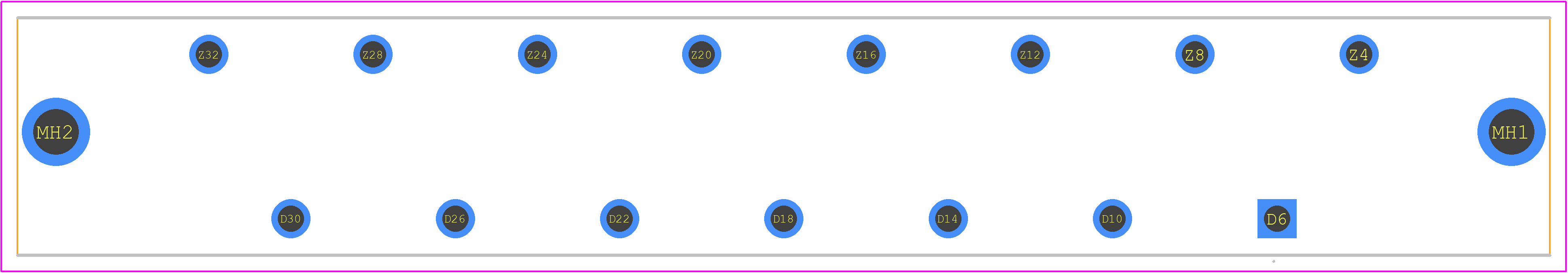

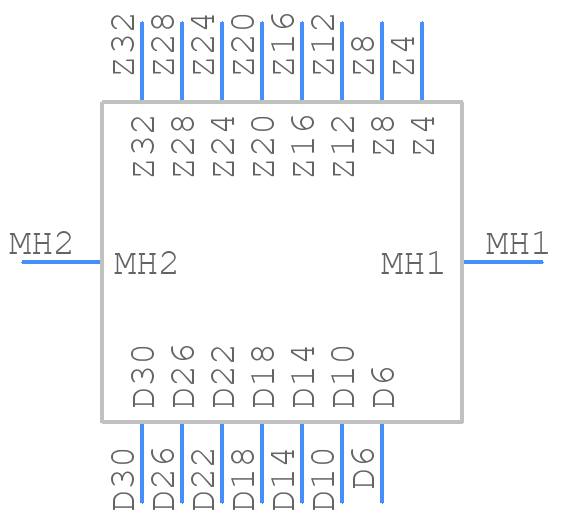

09063152821 Details

• Manufacturer Part Number:

  09063152821

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  HARTING Technology Group

• YTEOL:

  7

• Additional Feature:

  ROHS COMPLIANT

• Body Breadth:

  0.579 inch

• Body Depth:

  0.398 inch

• Body Length:

  3.731 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  BOARD EURO CONNECTOR

• Contact Arrangement:

  S0P2

• Contact Finish Mating:

  AG

• Contact Finish Termination:

  SILVER

• Contact Gender:

  FEMALE

• Contact Material:

  COPPER ALLOY

• Contact Resistance:

  8 mΩ

• Contact Style:

  BLADE PIN-SKT

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  3100VAC V

• Durability:

  500 Cycles

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  10000000000 Ω

• Insulator Material:

  GLASS FILLED POLYETHYLENE

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.4 inch

• Mating Contact Row Spacing:

  0.4 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  HOLE .112-.124

• Mounting Option 2:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Name of Rows Loaded:

  Z,D

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  10.16 mm

• Polarization Key:

  POLARIZED HOUSING

• Reference Standard:

  UL

• Terminal Length:

  0.157 inch

• Terminal Pitch:

  10.16 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  15
