09063326931 - HARTING

Description: DIN F male angled 32pin, w/ board locks, PL2 (rows d,z loaded)

Download 09063326931 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

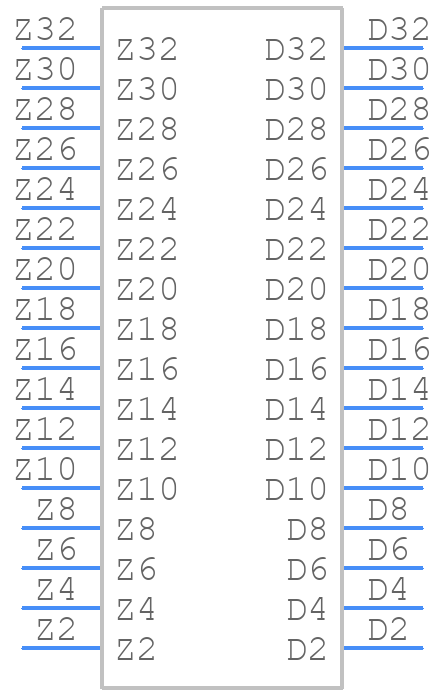

09063326931 - HARTING - PCB symbol
click to zoom
PCB Footprints

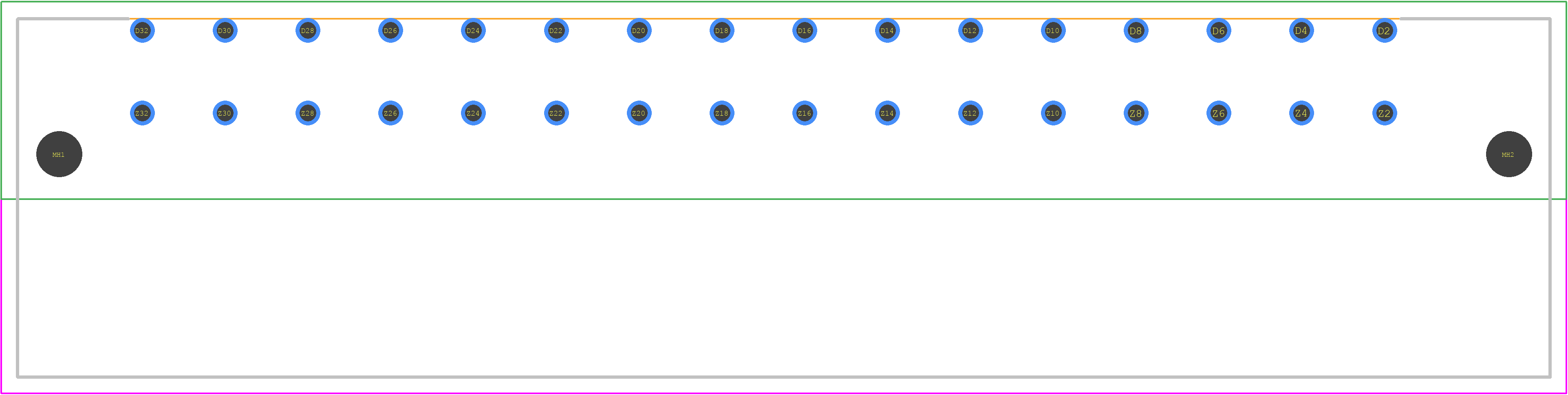

09063326931 - HARTING PCB footprint - Other - Other - 09063326931-19
click to zoom
3D Models
09063326931 - HARTING - 3D model - Other - 09063326931-19
click to zoom

09063326931 Details

  • Manufacturer Part Number:

    09063326931

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    32

09063326931 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 09063326931 connector is -40°C to 125°C, making it suitable for use in a wide range of industrial and automotive applications.
  • Yes, the 09063326931 connector is designed to be used in harsh environments and meets the requirements of IP67 and IP69K, making it resistant to dust, water, and other contaminants.
  • The mating cycle of the 09063326931 connector is 100 cycles, making it suitable for use in applications where frequent mating and unmating is required.
  • Yes, the 09063326931 connector is part of the HARTING Han series and is compatible with other Han series connectors, making it easy to integrate into existing systems.
  • The wire size range for the 09063326931 connector is 0.5 mm² to 2.5 mm², making it suitable for use with a wide range of wire sizes.
