09063486901 - HARTING

Description: DIN F male angled 48pin, w/ board locks, PL2

Download 09063486901 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

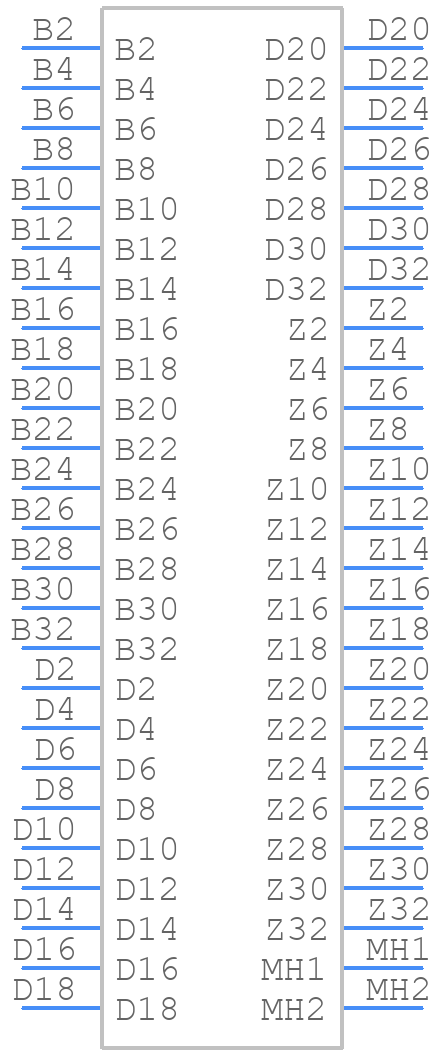

Symbol
09063486901 - HARTING - PCB symbol
click to zoom

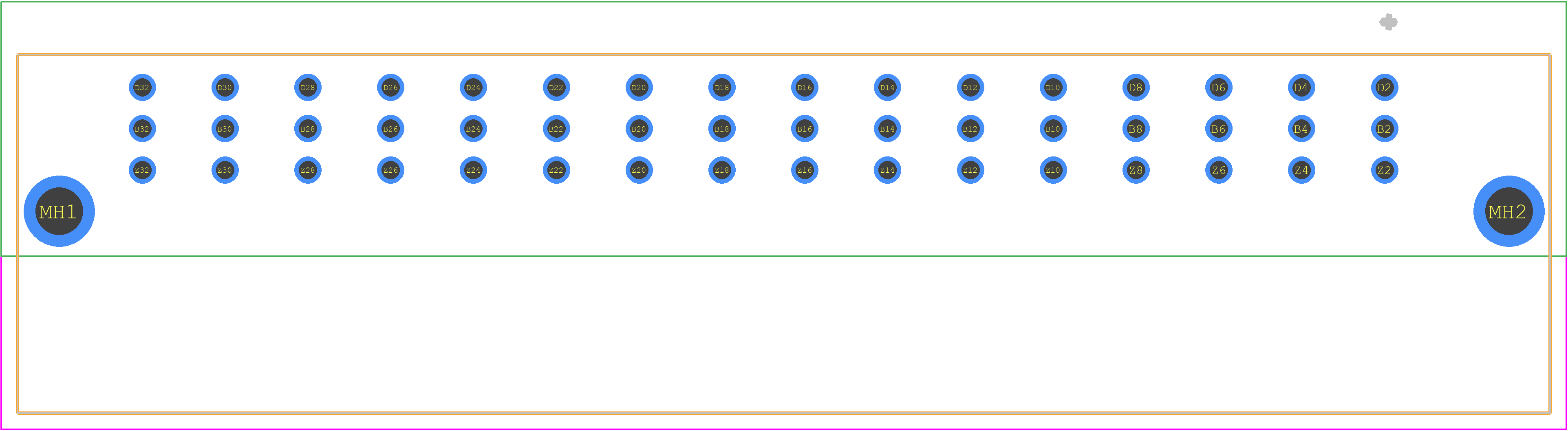

PCB Footprints
09063486901 - HARTING PCB footprint - Other - Other - 09063486901-3
click to zoom
3D Models
09063486901 - HARTING - 3D model - Other - 09063486901-3
click to zoom

09063486901 Details

  • Manufacturer Part Number:

    09063486901

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: DIN 41612, SHROUDED

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYETHYLENE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    GLASS FILLED POLYETHYLENE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    48

  • UL Flammability Code:

    94V-0

09063486901 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 09063486901 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09063486901 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Category 2.
  • Yes, the 09063486901 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and humidity resistance up to 95% RH.
  • Yes, the 09063486901 connector is part of the HARTING Han series and is compatible with other Han connectors, allowing for easy integration into existing systems.
  • The maximum current rating of the 09063486901 connector is 40 A per contact, depending on the specific application and environmental conditions.
