09063486951 - HARTING

Description: DIN F male angled 48pin, w/ board locks, PL2, THR/SMC

Download 09063486951 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

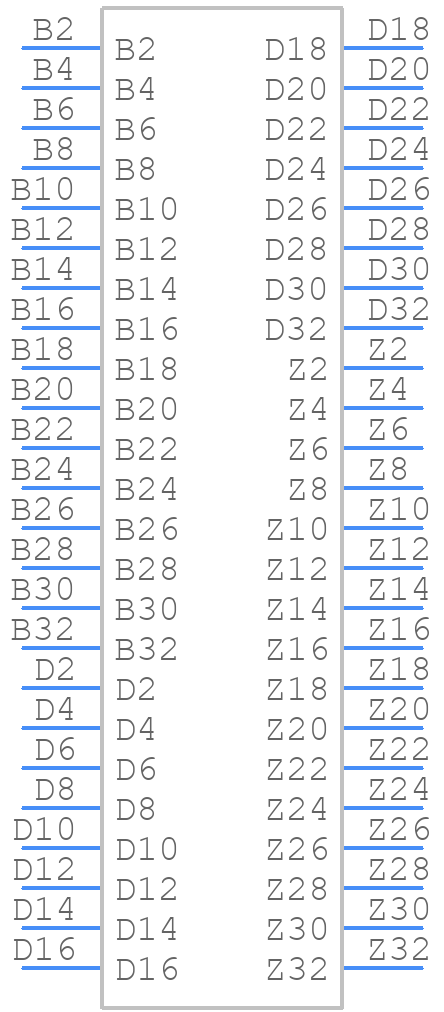

09063486951 - HARTING - PCB symbol
click to zoom
PCB Footprints

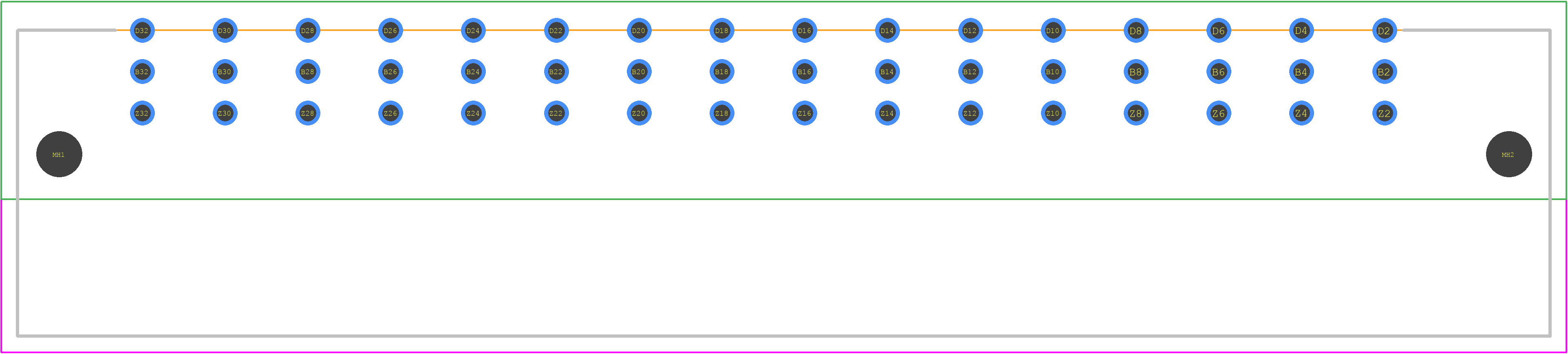

09063486951 - HARTING PCB footprint - Other - Other - 09063486951-23
click to zoom
3D Models
09063486951 - HARTING - 3D model - Other - 09063486951-23
click to zoom

09063486951 Details

  • Manufacturer Part Number:

    09063486951

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    7

  • Additional Feature:

    STANDARDS: DIN 41612; IEC 60603-2

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    5.08 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    48

  • UL Flammability Code:

    94V-0

09063486951 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 09063486951 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09063486951 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Category 2, which includes vibration testing.
  • Yes, the 09063486951 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and a humidity range of 5% to 95% RH.
  • Yes, the 09063486951 connector is part of the HARTING Han series and is compatible with other Han connectors, allowing for easy integration into existing systems.
  • The maximum current rating of the 09063486951 connector is 40 A per contact, depending on the specific application and environmental conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09063486951 Overview

Use the download button to access the 09063486951 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09063, or try a keyword search, such as Headers and Edge Type Connectors
