09151062703 - HARTING

Description: Han M23 Signal, 6pin Female Insert for pcb solder termination (6 2mm contacts)

Download 09151062703 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 09151062703 model

Email notifications will be applied after download.

Send part feedback

Symbol

09151062703 - HARTING - PCB symbol

PCB Footprints

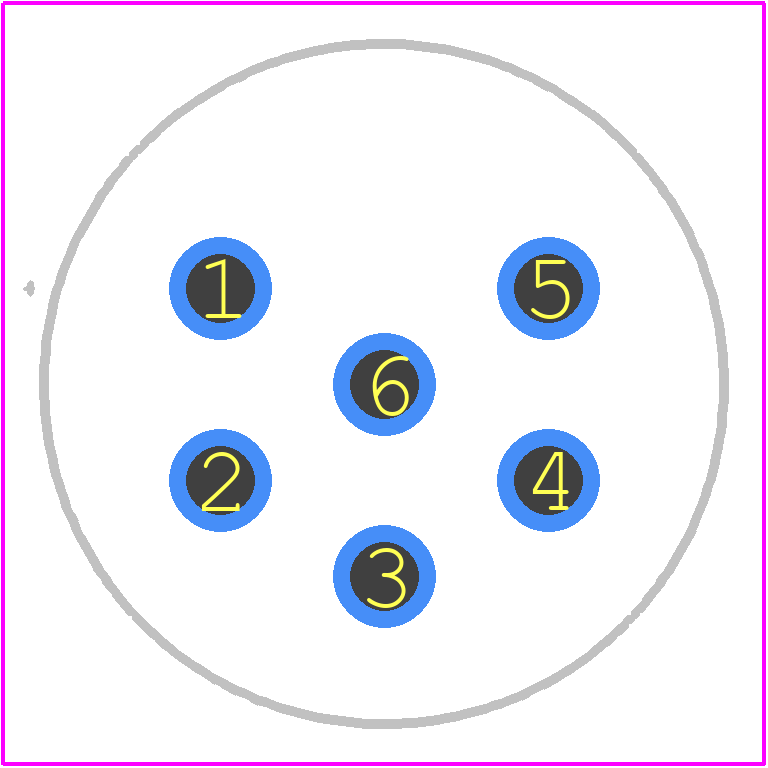

09151062703 - HARTING PCB footprint - Other - Other - 9151062703-1

3D Models

09151062703 - HARTING - 3D model - Other - 9151062703-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for 09151062703
Part Number 09151062703
Manufacturer HARTING
Pin Count 6
Part Category Connector
Package Category Other
Footprint Name Other - 9151062703-1
Released Date Feb 12, 2021
Last Modified Date Apr 21, 2023 12:04 AM UTC
Pinout / Pin List Click Here (Member Only)

09151062703 Details

Manufacturer Part Number:
09151062703
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
Manufacturer:
HARTING Technology Group
Connector Support Type:
CONNECTOR ACCESSORY

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

09151062703 Overview

Use the download button to access the 09151062703 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 09151, or try a keyword search, such as Assembly Items
