09151072703 - HARTING

Description: Han M23 Signal, 7pin Female Insert for pcb solder termination (7 2mm contacts)

Download 09151072703 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09151072703 - HARTING - PCB symbol
click to zoom
PCB Footprints

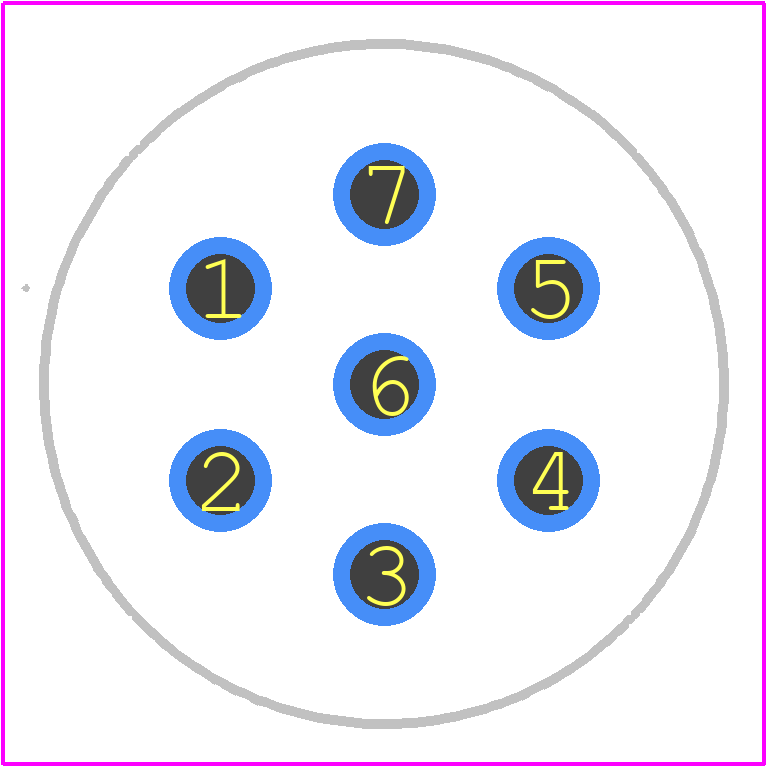

09151072703 - HARTING PCB footprint - Other - Other - 9151072703-2
click to zoom
3D Models
09151072703 - HARTING - 3D model - Other - 9151072703-2
click to zoom

09151072703 Details

  • Manufacturer Part Number:

    09151072703

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e4

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09151072703 Overview

Use the download button to access the 09151072703 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09151, or try a keyword search, such as Other Circular Connectors
