09151192603 - HARTING

Description: Han M23 Signal, 19pin Male Insert for pcb solder termination (16 1mm contacts and 3 1.5mm contacts)

Download 09151192603 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09151192603 - HARTING - PCB symbol
click to zoom
PCB Footprints

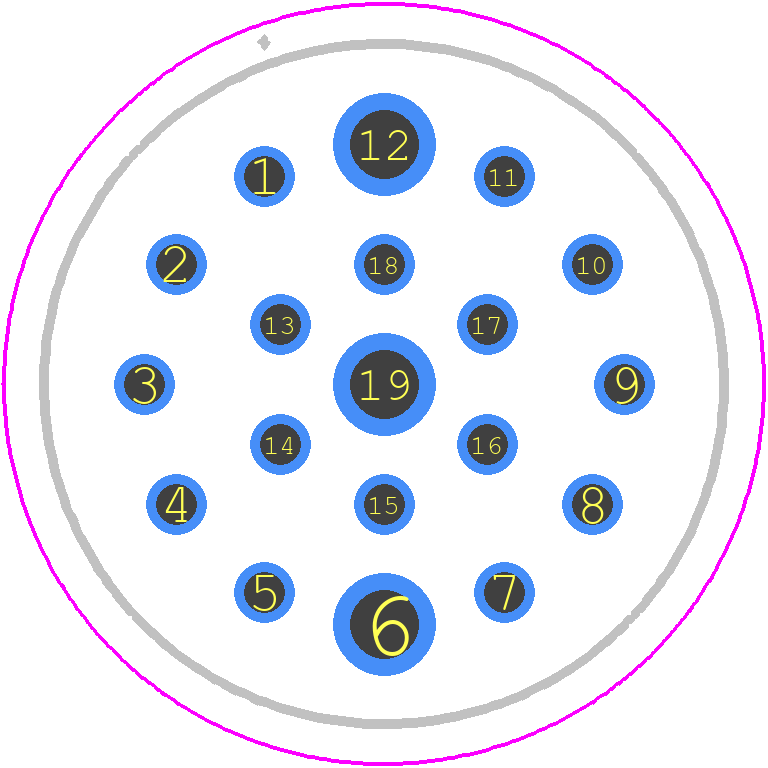

09151192603 - HARTING PCB footprint - Other - Other - 9151192603-2
click to zoom
3D Models
09151192603 - HARTING - 3D model - Other - 9151192603-2
click to zoom

09151192603 Details

  • Manufacturer Part Number:

    09151192603

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e4

09151192603 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09151192603 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09151192603 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
  • Yes, the 09151192603 connector is designed to withstand high-vibration applications, such as those found in industrial machinery, transportation, and construction equipment.
  • The maximum operating temperature of the 09151192603 connector is 125°C, making it suitable for use in high-temperature applications.
  • Yes, the 09151192603 connector is part of the HARTING Han series and is compatible with other Han series connectors, allowing for easy integration into existing systems.
