09185206323001 - HARTING

Description: Connectors, Male connector, Wave soldering termination, Rated current: ‌1 A, Angled, Copper alloy, Sn over Ni, Termination side, Au over Pd/Ni, Mating side, Performance level: 2, Thermoplastic resin (PBT), Grey

Download 09185206323001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09185206323001 - HARTING - PCB symbol
click to zoom
PCB Footprints

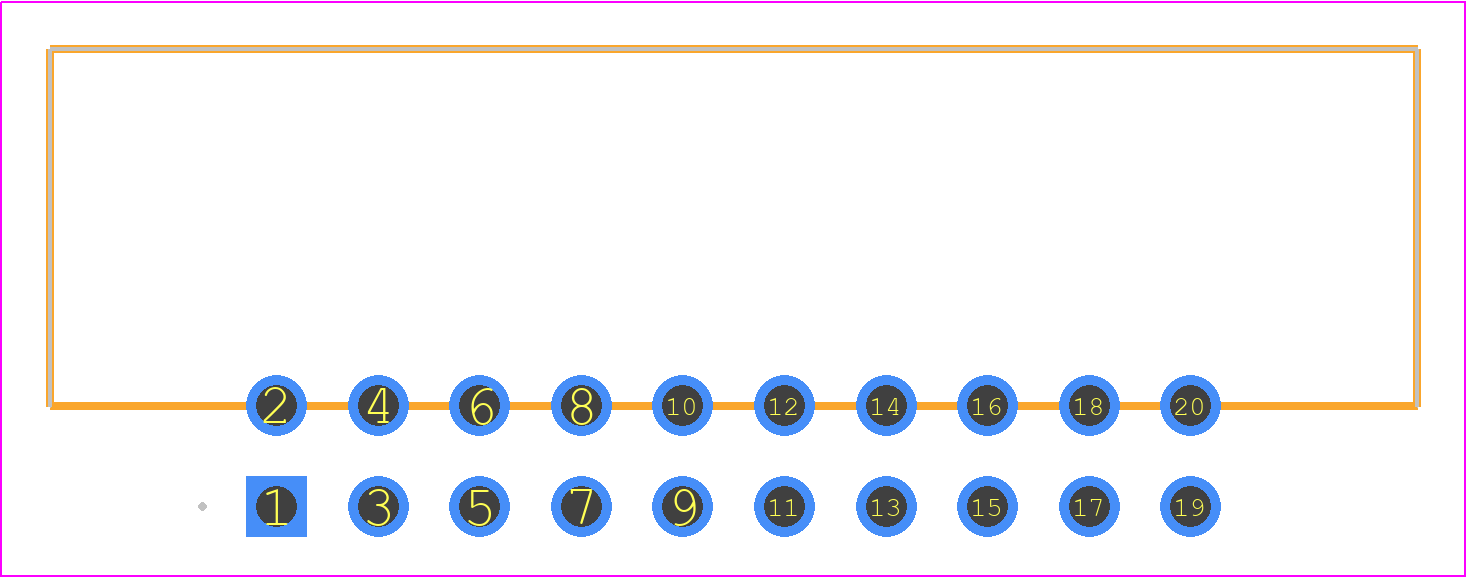

09185206323001 - HARTING PCB footprint - Other - Other - 09185206323001
click to zoom
3D Models
09185206323001 - HARTING - 3D model - Other - 09185206323001
click to zoom

09185206323001 Details

  • Manufacturer Part Number:

    09185206323001

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09185206323001 Overview

Use the download button to access the 09185206323001 schematic symbol, PCB footprint, and 3D model.
