09185247911 - HARTING

Description: Connectors, Male connector, Wave soldering termination, Rated current: ?1 A, Contacts: 24, Angled

Download 09185247911 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

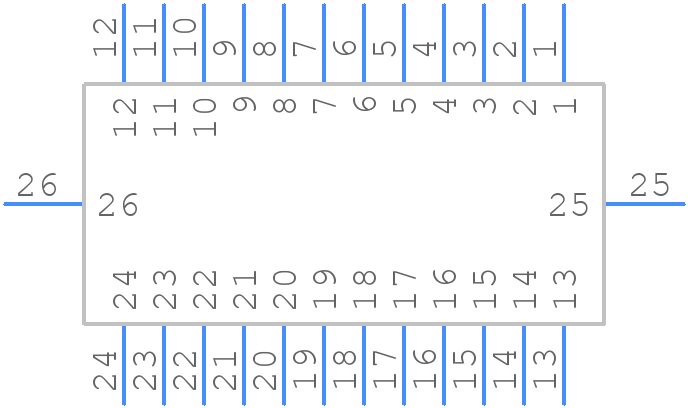

09185247911 - HARTING - PCB symbol
click to zoom
PCB Footprints

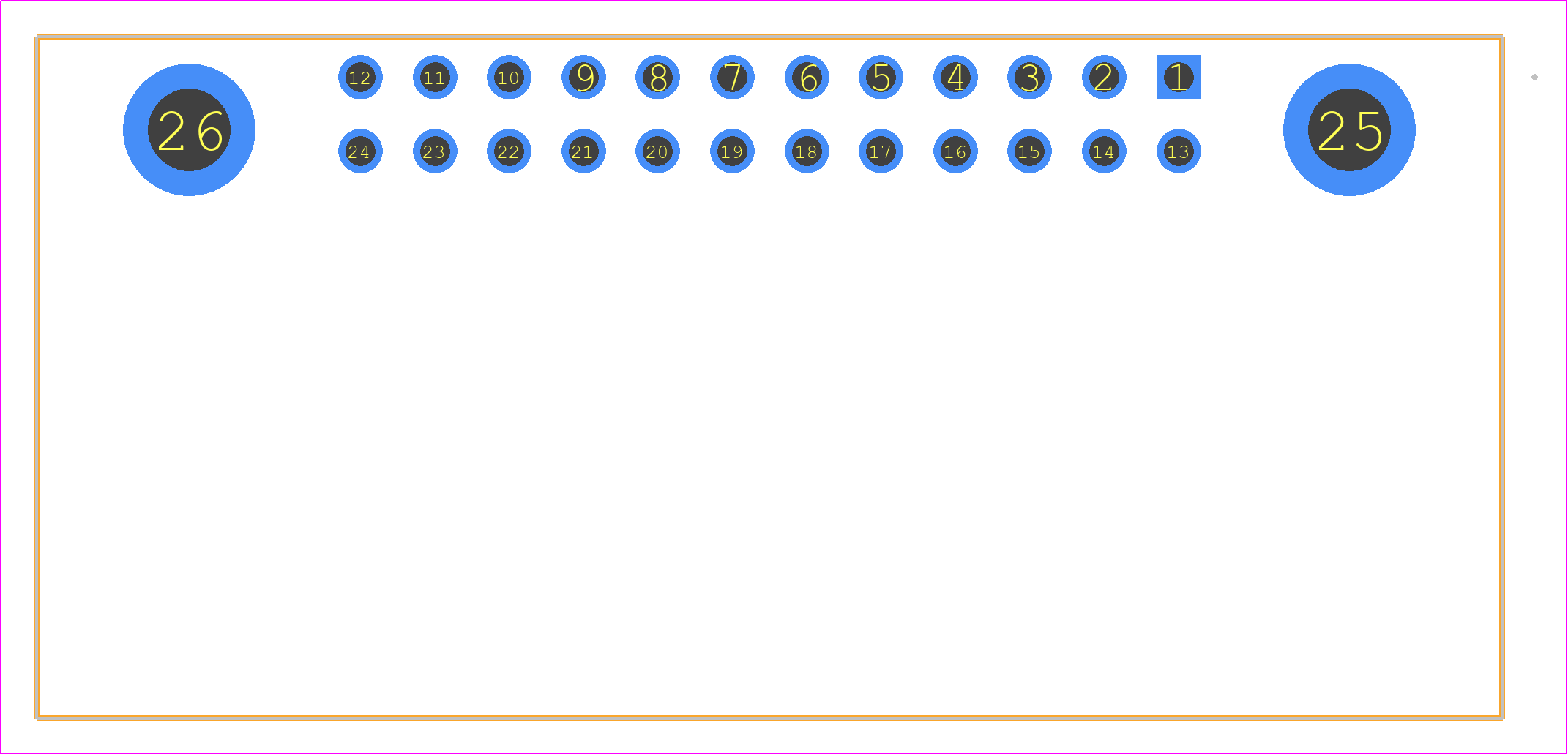

09185247911 - HARTING PCB footprint - Other - Other - 09185247911
click to zoom
3D Models
09185247911 - HARTING - 3D model - Other - 09185247911
click to zoom

09185247911 Details

  • Manufacturer Part Number:

    09185247911

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD EURO CONNECTOR

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09185247911 Overview

Use the download button to access the 09185247911 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09185, or try a keyword search, such as Headers and Edge Type Connectors
