STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED
Body Breadth:
0.366 inch
Body Depth:
0.372 inch
Body Length:
1.606 inch
Body/Shell Style:
RECEPTACLE
Connector Type:
BOARD EURO CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
RECTANGULAR
Contact Resistance:
20 mΩ
Contact Style:
SQ PIN-SKT
DIN Conformance:
YES
Durability:
250 Cycles
Filter Feature:
NO
IEC Conformance:
YES
Insulation Resistance:
1000000000 Ω
Insulator Color:
GRAY
Insulator Material:
POLYBUTYLENE TEREPHTHALATE
MIL Conformance:
NO
Mating Contact Pitch:
0.1 inch
Mating Contact Row Spacing:
0.1 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2.54 mm
Polarization Key:
POLARIZED HOUSING
Rated Current (Signal):
2 A
Reference Standard:
UL
Terminal Length:
0.177 inch
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
26
UL Flammability Code:
94V-0
09185266322 Frequently Asked Questions (FAQs)
The recommended torque for screwing the 09185266322 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
Yes, the 09185266322 connector is designed to be used in harsh environments, including those with high temperatures, humidity, and vibration. It meets the requirements of IP67 and is suitable for use in industrial, transportation, and outdoor applications.
The 09185266322 connector is designed for signal transmission up to 1 Gbps, making it suitable for high-speed data transmission applications such as Ethernet, USB, and HDMI.
Yes, the 09185266322 connector is part of the HARTING Han series, which is a modular connector system. It is compatible with other Han series connectors, allowing for flexibility and customization in design and application.
The operating temperature range of the 09185266322 connector is -40°C to +125°C, making it suitable for use in a wide range of applications and environments.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
09185266322 Overview

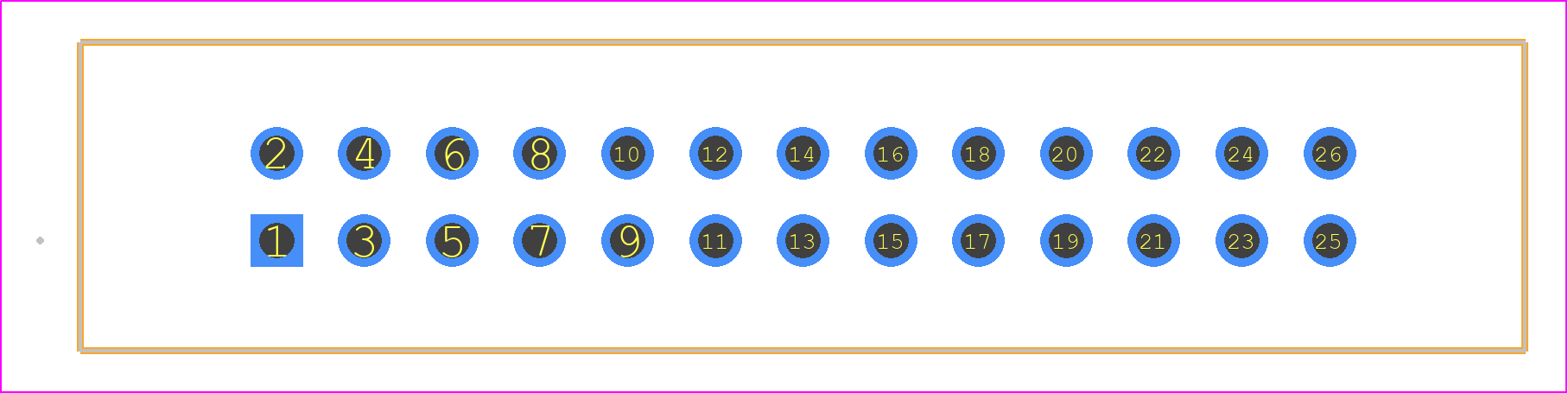

Use the download button to access the 09185266322 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09185,
or try a keyword search, such as Headers and Edge Type Connectors
