09185347323 - HARTING

09185347323 Details

• Manufacturer Part Number:

  09185347323

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  HARTING Technology Group

• YTEOL:

  8

• Additional Feature:

  STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

• Body Breadth:

  0.362 inch

• Body Depth:

  0.48 inch

• Body Length:

  2 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  BOARD EURO CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  TIN OVER NICKEL

• Contact Gender:

  MALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  20 mΩ

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  YES

• Dielectric Withstanding Voltage:

  1000VAC V

• Durability:

  50 Cycles

• Filter Feature:

  NO

• IEC Conformance:

  YES

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  BEIGE

• Insulator Material:

  POLYBUTYLENE TEREPHTHALATE

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.1 inch

• Mating Contact Row Spacing:

  0.1 inch

• Mixed Contacts:

  NO

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

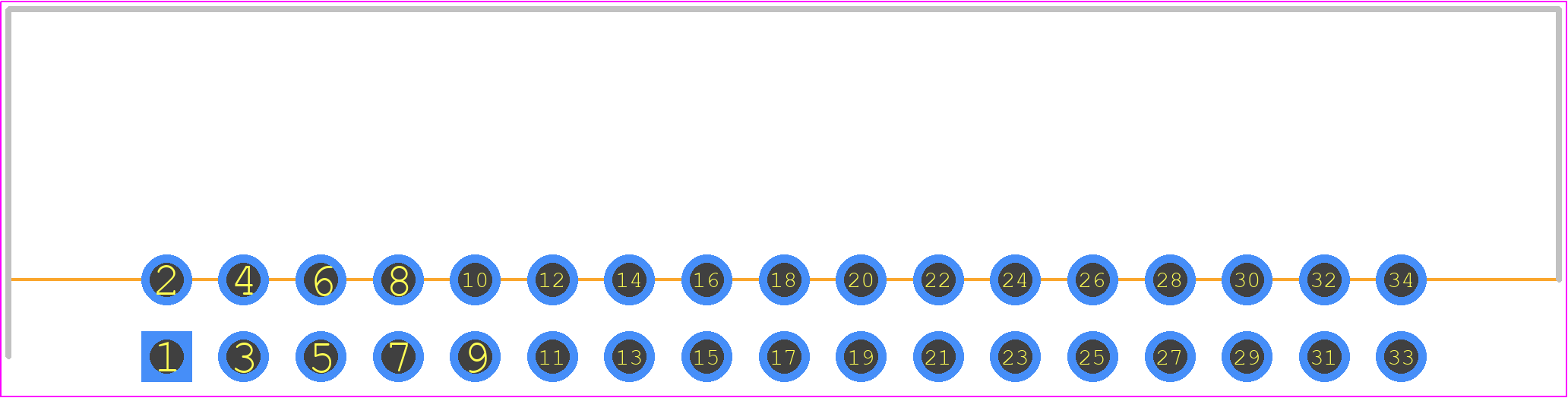

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  2.54 mm

• Polarization Key:

  CTR W/GUIDE SLOTS

• Rated Current (Signal):

  1 A

• Reference Standard:

  UL

• Terminal Length:

  0.114 inch

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  34

• UL Flammability Code:

  94V-0
