09185405919 - HARTING

Description: SEK/IDC Press In straight male, 40pin, PLS4, w/ short levers - phased out (possible replacement is solder pin versions)

Download 09185405919 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

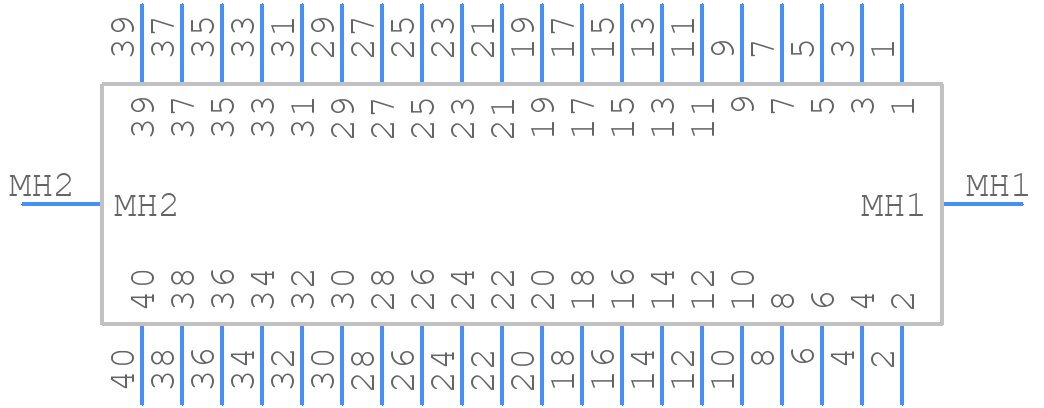

09185405919 - HARTING - PCB symbol
click to zoom
PCB Footprints

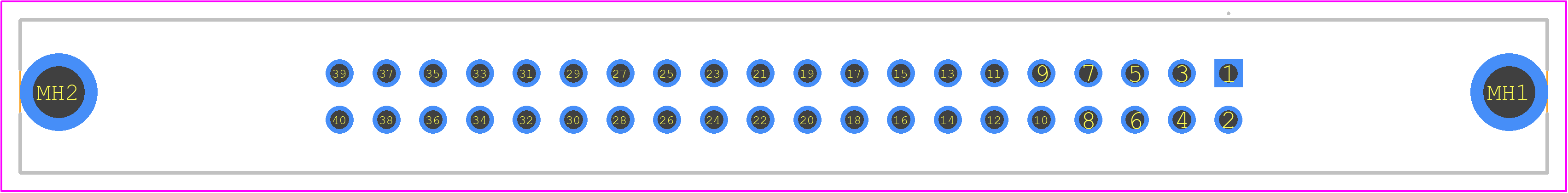

09185405919 - HARTING PCB footprint - Other - Other - 09185405919-5
click to zoom
3D Models
09185405919 - HARTING - 3D model - Other - 09185405919-5
click to zoom

09185405919 Details

  • Manufacturer Part Number:

    09185405919

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    0

  • Connector Type:

    BOARD EURO CONNECTOR

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09185405919 Overview

Use the download button to access the 09185405919 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09185, or try a keyword search, such as Headers and Edge Type Connectors

Parts related to 09185405919

Showing 0 results
