09185406324 - HARTING

Description: SEK/IDC Low Profile straight male, 2.9mm tails, 40pin, PL2

Download 09185406324 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

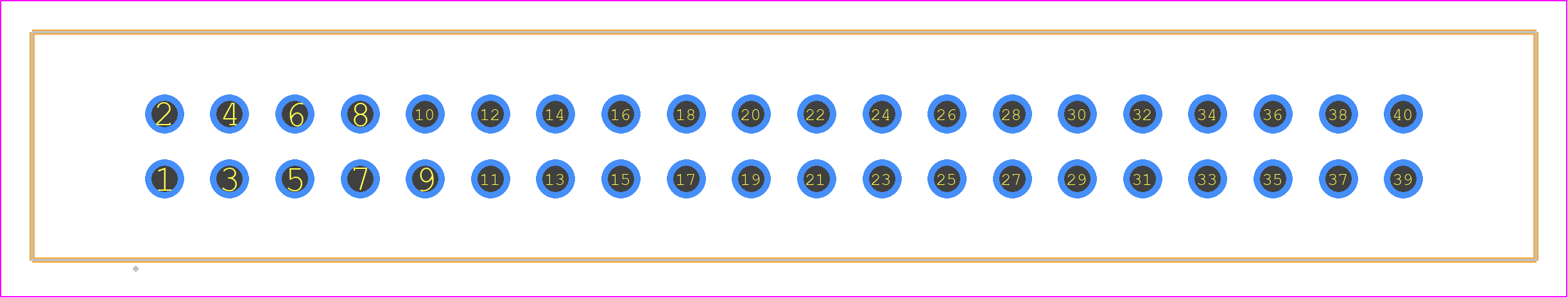

09185406324 - HARTING PCB footprint - Other - Other - 09185406324
click to zoom
3D Models
09185406324 - HARTING  - 3D model - Other - 09185406324
click to zoom

09185406324 Details

  • Manufacturer Part Number:

    09185406324

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Risk Rank:

    0.74

  • YTEOL:

    7.9

  • Additional Feature:

    STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

  • Body Breadth:

    0.366 inch

  • Body Depth:

    0.372 inch

  • Body Length:

    2.307 inch

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    YES

  • Durability:

    250 Cycles

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    GRAY

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    2 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.114 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0
