09190209643 - HARTING

Description: SEK/IDC pcb transition connector, 4rows, 3.2mm tails, 20pin

Download 09190209643 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09190209643 - HARTING - PCB symbol
click to zoom
PCB Footprints

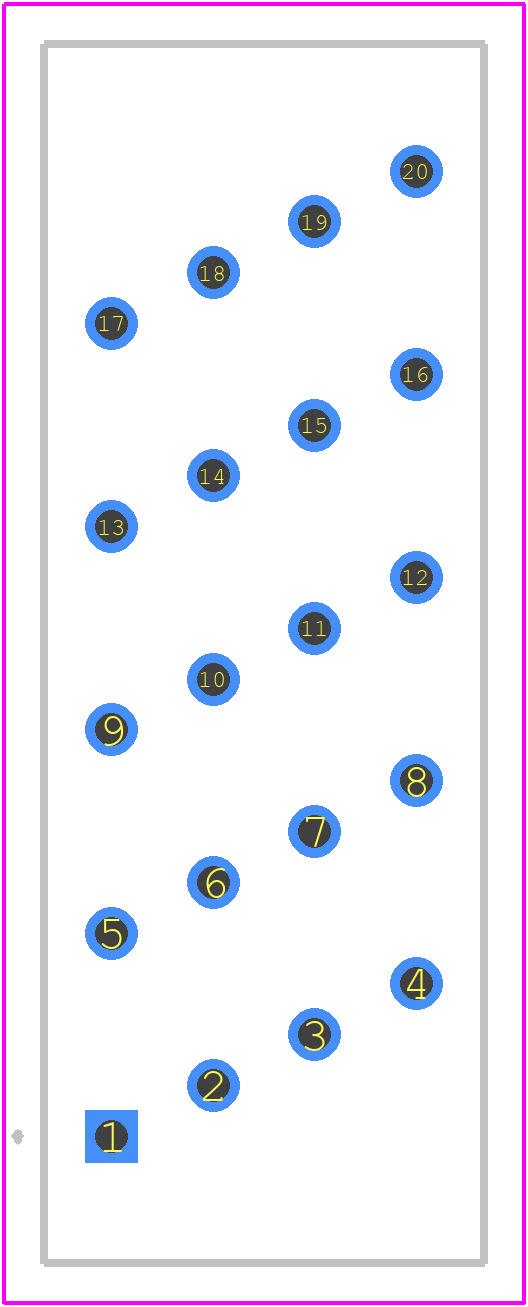

09190209643 - HARTING PCB footprint - Other - Other - 09190209643-1
click to zoom
3D Models
09190209643 - HARTING - 3D model - Other - 09190209643-1
click to zoom

09190209643 Details

  • Manufacturer Part Number:

    09190209643

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    9

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    4

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

09190209643 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09190209643 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09190209643 connector is designed to withstand high-vibration environments, with a vibration resistance of up to 10g according to IEC 61373 Cat. 2.
  • Yes, the 09190209643 connector is designed for outdoor use and can withstand harsh environmental conditions, including temperatures from -40°C to 125°C, and IP67 ingress protection.
  • The maximum current rating for the 09190209643 connector is 10A per contact, depending on the specific application and environmental conditions.
  • Yes, the 09190209643 connector is part of the HARTING Han series and is compatible with other Han series connectors, allowing for easy integration and mating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09190209643 Overview

Use the download button to access the 09190209643 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09190, or try a keyword search, such as Headers and Edge Type Connectors
