09195265323740 footprint, schematic symbol and 3D model by HARTING

09195265323740 - HARTING

Description: SEK/IDC THR/SMC Low Profile angled male, 2.9mm tails, 26pin, PLS4, 280pc reel

Download 09195265323740 Model

Schematic
symbols

PCB
footprints

3D
models

Symbol

click to zoom

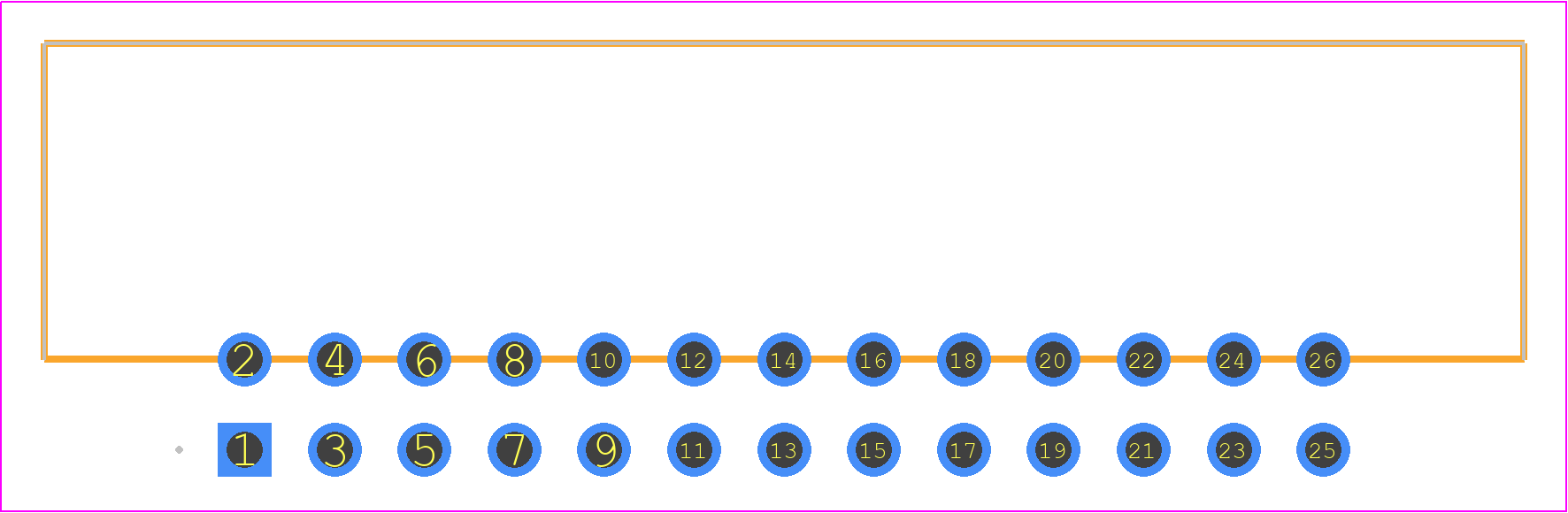

PCB Footprints

09195265323740 - HARTING PCB footprint - Other - Other - 09195265323740

click to zoom

3D Models

09195265323740 - HARTING - 3D model - Other - 09195265323740

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 09195265323740
Part Number 09195265323740
Manufacturer HARTING
Pin Count 26
Part Category Connector
Package Category Other
Footprint Name Other - 09195265323740
Released Date Jun 25, 2021
Last Modified Date May 24, 2023 9:08 AM UTC
Pinout / Pin List Click Here (Member Only)

09195265323740 Details

Manufacturer Part Number:
09195265323740
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Vietnam
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
HARTING Technology Group
Connector Type:
BOARD EURO CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
NOT APPLICABLE
Contact Material:
NOT SPECIFIED

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

09195265323740 Overview

Use the download button to access the 09195265323740 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 09195, or try a keyword search, such as Headers and Edge Type Connectors
