09195307903 - HARTING

Description: Connectors, Male connector, Reflow soldering termination (THR), Rated current: ‌1 A, Angled, Copper alloy, Sn over Ni, Termination side, Au over Pd/Ni, Mating side, Performance level: 2, Thermoplastic resin (PCT)

Download 09195307903 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

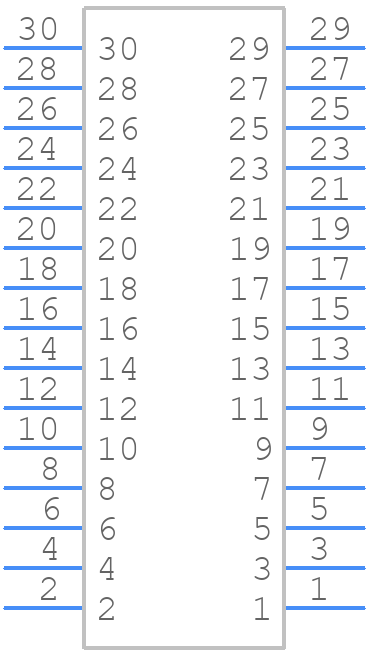

09195307903 - HARTING - PCB symbol
click to zoom
PCB Footprints

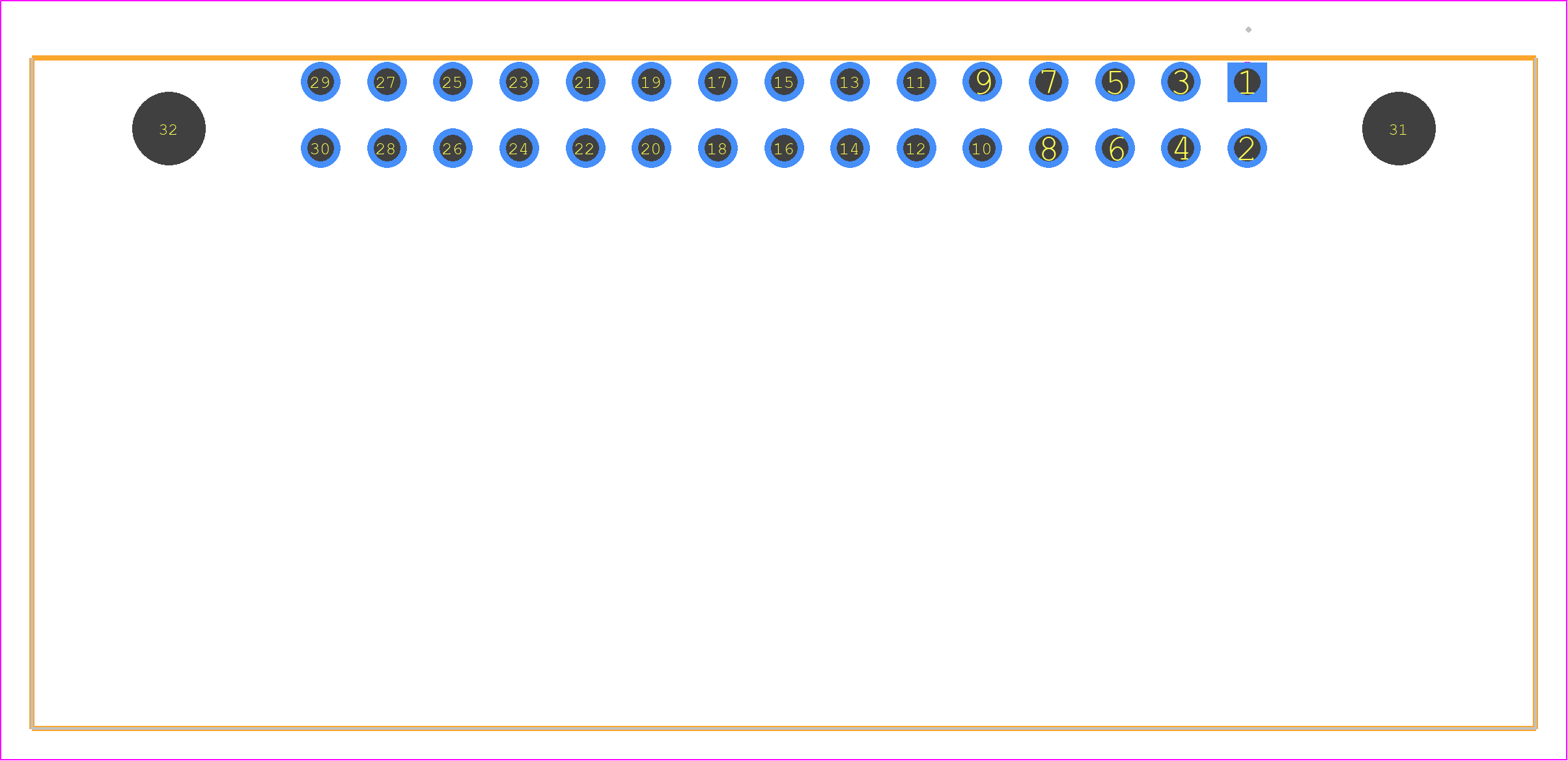

09195307903 - HARTING PCB footprint - Other - Other - 09195307903
click to zoom
3D Models
09195307903 - HARTING - 3D model - Other - 09195307903
click to zoom

09195307903 Details

  • Manufacturer Part Number:

    09195307903

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09195307903 Overview

Use the download button to access the 09195307903 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09195, or try a keyword search, such as Headers and Edge Type Connectors
