09195646904 - HARTING

09195646904 Details

• Manufacturer Part Number:

  09195646904

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Romania

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  HARTING Technology Group

• YTEOL:

  8

• Additional Feature:

  STANDARDS: IEC 60603-13; DIN EN 60603-13

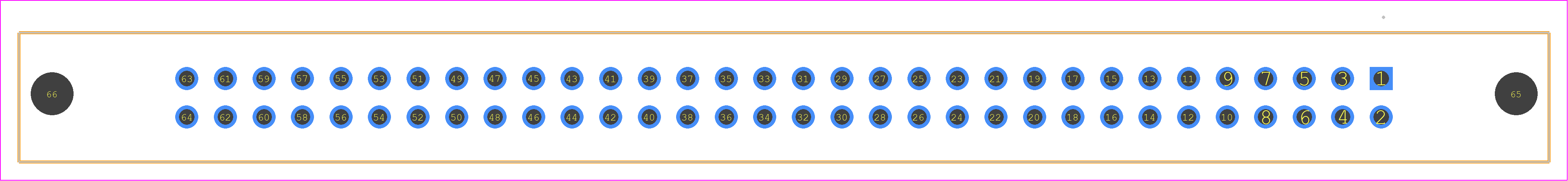

• Board Mounting Option:

  HOLE .099-.111

• Body Breadth:

  0.331 inch

• Body Depth:

  0.681 inch

• Body Length:

  4.484 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  BOARD EURO CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  NOT APPLICABLE

• Contact Gender:

  MALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  20 mΩ

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  YES

• Dielectric Withstanding Voltage:

  1000VAC V

• Durability:

  200 Cycles

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  BEIGE

• Insulator Material:

  GLASS FILLED POLYCYCLOHEXYLENE TEREPHTHALLATE

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.1 inch

• Mating Contact Row Spacing:

  0.1 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LATCH & EJECT

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  2.54 mm

• Polarization Key:

  CTR W/GUIDE SLOTS

• Rated Current (Signal):

  1 A

• Reference Standard:

  UL

• Terminal Length:

  0.114 inch

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  64

• UL Flammability Code:

  94V-0
